Technical Specifications

Engine

Engine Type Construction Number

250

Designer

Colombo

Type

V-12

Bore x Stroke

73.0 x 58.8

Displacement

2953cc

Compression Ratio

9.0:1

Layout

Single overhead Camshaft

Drive

Chain

Cam Followers

Finger

Valve Design

Inclined

No. of Valves

2

Values Springs

Hairpin

No. of Spark Plugs/Cylinder

1

Ignition

2 Distributors

No. of Carburetors

3

Type of Carburetors

36 IF 4/c or 36 DCZ or 36 DCF or 40 IF 4/c

Bhp @ rpm

240 Bhp @ 7200rpm


Drive Train

Clutch

Multiple disc

Transmission - No. of Gears

4-Speed & reverse

Transmission - Type

All synchro

Transmission - Location

With engine

Axle Ration

3.636, 4.000 4.250 or 4.444:1


Chassis

Type

250MM53

Chassis

Welded Tube

Frame

Ladder Type

Wheelbase

2400

Track Front

1325

Track Rear

1320

Suspension

Front Independent

Type Unequal length A arms

Springs Transverse leaf

Suspension

  Rear Rigid axle

Springs Semi elliptic

Shocks

Houdaille

Brakes

Drum

Wheels

Front Borrani

Rear Borrani

Tires

Front 5.50 x 16 or 6.40 x 15

Rear 6.00 x 16 or 6.40 x 15


General

Body Designer


Body Builder

  Pinin Farina Vignale

Length cm

Overall

Width

Height

Curb Weight kg




Test Sheet

250 73.0 x 58.8 2953 240 hp @ 7200



Pinin Farin Berlinetta

18 0250MM, 0252MM, 0254MM, 0256MM, 0258MM,

0270MM, 0276MM, 0292MM, 0298MM, 0310MM,

0312MM, 0316MM, 0338MM, 0340MM, 0344MM,

0352MM, 0354MM, 0356MM

Vignale Spyder Series I

2 0230MM**, 0260MM

Vignale Spyder Series II

low door line

4 0274MM, 0282MM*, 0288MM**, 0296MM**

Vignale Spyder Series III

6 0326MM**, 0330MM**, 0332MM, 0336MM,

0348MM, 0390MM

Vignale Berlinetta

1 0334MM


Note: * missing, ** rebodied


Total

31

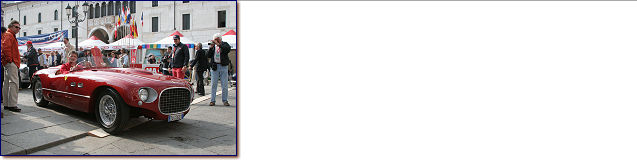

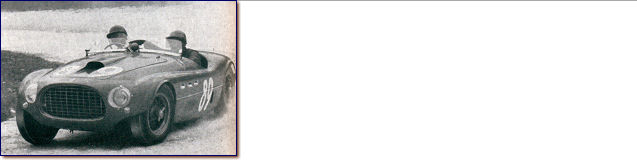

Ferrari 250 MM Vignale Spyder Series I s/n 0230MM

rebodied by Scaglietti

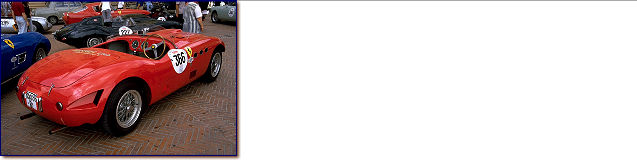

Ferrari 250 MM Vignale Spider series I, s/n 0230MM

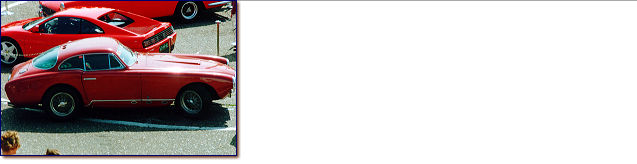

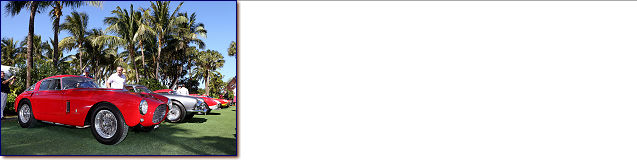

Ferrari 250 MM Pinin Farina Berlinetta s/n 0250MM

250 MM Pinin Farina Berlinetta s/n 0250MM

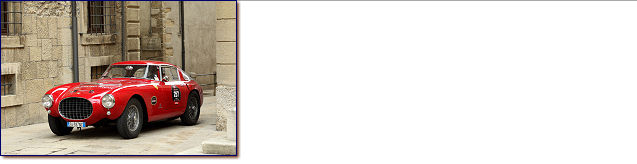

Ferrari 250 MM PF Berlinetta s/n 0252MM

destroyed

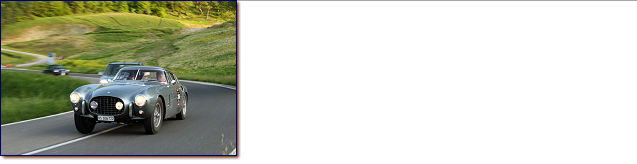

Ferrari 250 MM PF Berlinetta s/n 0254MM

Ferrari 250 MM Pinin Farina Berlinetta s/n 0256MM

the nose looks very original, ;-))
inspired by a vine barrel

Ferrari 250 MM Pinin Farina Berlinetta s/n 0258MM

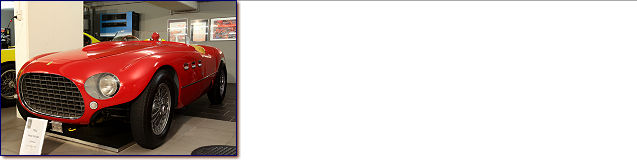

Ferrari 250 MM Vignale Spyder s/n 0260MM

250 MM Vignale Spyder s/n 0260MM

Ferrari 250 MM Pinin Farina Berlinetta s/n 0270MM

Ferrari 250 MM Berlinetta Pinin Farina, s/n 0270MM

Ferrari 250 MM Vignale Spyder s/n 0274MM

250 MM Vignale Spyder s/n 0274MM

Ferrari 250 MM Vignale Spyder s/n 0276MM  - Recreation

rebodied as Morelli Spyder
renumbered 0330MM
0276MM ex 0330MM
rebodied as Vignale Spyder

Ferrari 250 MM Vignale Spider Recreation s/n 0276MM

Ferrari 250 MM Vignale Spyder s/n 0282MM

Ferrari 212 Export Vignale Spider, s/n 0182ED

Ferrari 250 MM Vignale Spyder s/n 0288MM

148 Seddio/Curnis I Ferrari 250 MM Vignale Spyder 1953 0288MM

Ferrari 212 Europa Vignale Coupe s/n 0292MM

restamped 0239EU

212 Europa s/n 0239EU Echeverria - Villegas

Ferrari 250 MM Vignale Spyder s/n 0296MM

Ferrari 250 MM Berlinetta Pinin Farina s/n 0298MM

the nose looks very original, ;-))

Ferrari 250 MM PF Berlinetta s/n 0310MM

Ferrari 250 MM Berlinetta Pinin Farina s/n 0312MM

Ferrari 250 MM Berlinetta Pinin Farina s/n 0312MM

Ferrari 250 MM Pinin Farina Berlinetta s/n 0316MM

Ferrari 250 MM Pinin Farina Berlinetta s/n 0316MM

Ferrari 250 MM Vignale Spyder s/n 0326MM

Ferrari 250 MM Vignale Spyder s/n 0326MM

Ferrari 250 MM Vignale Spyder s/n 0330M

Ferrari 250 MM Vignale Spyder s/n 0330MM

Ferrari 250 MM Vignale Spyder s/n 0332M

Ferrari 250 MM Vignale Berlinetta s/n 0334MM

Ferrari 250 MM Vignale Berlinetta s/n 0334MM

Ferrari 250 MM Vignale Spyder s/n 0336MM

Ferrari 250 MM Pinin Farina Berlinetta s/n 0338MM

Ferrari 250 MM PF Berlinetta s/n 0340MM

Ferrari 250 MM PF Berlinetta s/n 0344MM

Ferrari 250 MM PF Berlinetta s/n 0344MM

Ferrari 250 MM Vignale Spyder s/n 0348MM

Ferrari 250 MM Vignale Spyder s/n 0348MM

Ferrari 250 MM PF Berlinetta s/n 0352MM

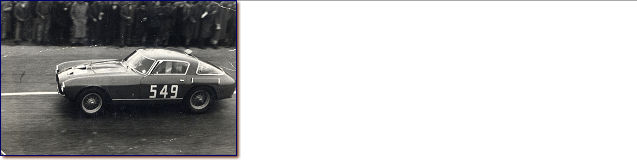

Ferrari 250 MM PF Berlinetta s/n 0352MM #549 - Gerino Gerini - Luciano Donozzolo - dnf

Ferrari 250 MM Pinin Farina Berlinetta s/n 0354MM

Ferrari 250 MM PF Berlinetta s/n 0356MM

Ferrari 250 MM Vignale Spyder s/n 0390MM

Ferrari 250 MM Vignale Spyder s/n 0390MM
