Technical Specifications


Engine

Type

128F and 128E/63

Engine

Front longitudinal 60° V12,

light alloy cylinder block and head

Timing gear

2 valves per cylinder, single overhead camshaft per

cylinder bank

Bore and stroke

73 x 58.8 mm

Unitary and total displacement

246.10/2,953.21 cc

Compression ratio

8.8:1

Maximum power

240 bhp at 7,000 rpm

Fuel feed

3 twin choke Weber 40 DCL6 carbs

Ignition

single spark plug per cyclinder, 2 coils

Transmission

Dry, single-plate clutch,

4-speed gearbox + overdrive + reverse,

conventional differential


Chassis

Chassis type

508E

Chassis

Elliptical section steel tubes

Front suspension

Independent, unequal-length wishbones, coil springs

Rear suspension

Live axle, semi-elliptic leaf springs

Wheelbase, front and rear track

2,600 / 1,354 / 1,394 mm

Kerb weight

1,280 kg

Fuel tank

100 litres

Top Speed

230km/h


Total

302
 Previous page
 Next page
Up

Ferrari 250 GTE s/n 4221GT

Ferrari 250 GTE s/n 4223GT

Ferrari 250 GTE s/n 4225GT

Ferrari 250 GTE s/n 4227GT

Ferrari 250 GTE s/n 4229GT

Ferrari 250 GTE s/n 4231GT

Ferrari 250 GTE s/n 4233GT

Ferrari 250 GTE s/n 4235GT

250 GTE 2+2 s/n 4135GT

Ferrari 250 GTE s/n 4239GT

250 GTE s/n 3839GT GTO Replica by Favre

Ferrari 250 GTE s/n 4243GT

rebodied as GTO

250 GTE s/n 4243GT

Ferrari 250 GTE s/n 4245GT

Ferrari 250 GT PF Cabriolet S.II s/n 3645 GT - Lot 104

Ferrari 250 GTE s/n 4247GT

Ferrari 250 GTE s/n 4249GT

Ferrari 250 GTE s/n 4253GT

Ferrari 250 GTE s/n 4255GT

Ferrari 250 GT PF S2 Cabriolet s/n 3655GT & 212 Touring Barchetta s/n 0158ED

Ferrari 250 GTE s/n 4257GT

.. - rebodied as TR replica
.. engine installed 6533GT 330 GT

250 GTO s/n 3757GT

Ferrari 250 GTE s/n 4259GT

Ferrari 250 GTE s/n 4261GT

Ferrari 250 GTE 2+2 S3 s/n 4161GT

Ferrari 250 GTE s/n 4263GT

9. - engine installed in 2443GT (250 GT SWB)
.. - engine installed from 5935 (330 GT 2+2)

Ferrari 250 GT SWB Berlinetta s/n 2443GT

Ferrari 250 GTE s/n 4265GT

Ferrari 250 GT SWB Berlinetta s/n 4065GT

Ferrari 250 GTE s/n 4269GT

Ferrari 250 GTE s/n 4273GT

Ferrari 250 GTE s/n 4275GT

.. - rebodied as 250 TR replica by Strother McMinn, Scott Knight & Mel Swain

Ferrari 250 GTE s/n 4277GT

Ferrari 250 GTE s/n 4281GT

rebodied as GTO

250 GTE s/n 4281GT

Ferrari 250 GTE s/n 4283GT

.. - rebodied as 250 GT SWB Replica by Giordanengo

Ferrari 250 GTE s/n 4285GT

Rebodied as TR59 Replica

250 GTE 2+2 s/n 4185GT

Ferrari 250 GTE s/n 4287GT

Ferrari 250 GTE s/n 4289GT

Ferrari 250 GTE s/n 4291GT

Ferrari 250 GTE s/n 4295GT

Ferrari 250 GTE s/n 4299GT

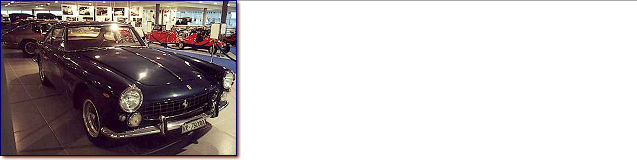

250 GTE shown in the Nicolis Car Museum in Villafranca di Verona, is a 3rd series, Chassis 4299GT, with Italian License VR.760000, dark bluemetallic over tobacco leather and beige carpets

Ferrari 250 GTE s/n 4301GT

250 GTE 2+2 SII s/n 4101GT



Ferrari 250 GTE s/n 4303GT

Ferrari 250 GTE s/n 4305GT

250 GTO '62 Mascherone based on 250 GTE-chassis s/n 4105GT

Ferrari 250 GTE s/n 4309GT

400 Superamerica s/n 4109SA

Ferrari 250 GTE s/n 4311GT

Ferrari 400 Superamerica s/n 4111SA

Ferrari 250 GTE s/n 4313GT

Ferrari 250 GTE s/n 4315GT

Ferrari 250 GTE s/n 4317GT

Ferrari 250 GTE s/n 4319GT

1962 Ferrari 250 GTO Berlinetta Scaglietti s/n 4219GT

Ferrari 250 GTE s/n 4321GT

Ferrari 250 GTE s/n 4323GT

Ferrari 250 GTE s/n 4325GT

Ferrari 250 GTE s/n 4327GT

Ferrari 250 GTE 2+2 s/n 4327GT

Ferrari 250 GTE s/n 4329GT

Ferrari 250 GTE s/n 4331GT

Ferrari 250 GTE s/n 4333GT

../.. - engine from 4003GT

Ferrari 250 GTE s/n 4337GT

Ferrari 250 GTE s/n 4339GT

250 GTE s/n 3839GT GTO Replica by Favre
