Technical Specifications


Engine

Type

128F and 128E/63

Engine

Front longitudinal 60° V12,

light alloy cylinder block and head

Timing gear

2 valves per cylinder, single overhead camshaft per

cylinder bank

Bore and stroke

73 x 58.8 mm

Unitary and total displacement

246.10/2,953.21 cc

Compression ratio

8.8:1

Maximum power

240 bhp at 7,000 rpm

Fuel feed

3 twin choke Weber 40 DCL6 carbs

Ignition

single spark plug per cyclinder, 2 coils

Transmission

Dry, single-plate clutch,

4-speed gearbox + overdrive + reverse,

conventional differential


Chassis

Chassis type

508E

Chassis

Elliptical section steel tubes

Front suspension

Independent, unequal-length wishbones, coil springs

Rear suspension

Live axle, semi-elliptic leaf springs

Wheelbase, front and rear track

2,600 / 1,354 / 1,394 mm

Kerb weight

1,280 kg

Fuel tank

100 litres

Top Speed

230km/h


Total

302
 Previous page
 Next page
Up

Ferrari 250 GTE s/n 4093GT

first Series III

Ferrari 250 GTE s/n 4097GT

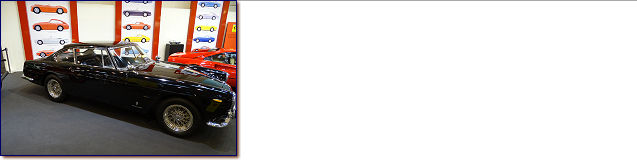

Ferrari 250 GTE SIII s/n 4097GT

Ferrari 250 GTE s/n 4099GT

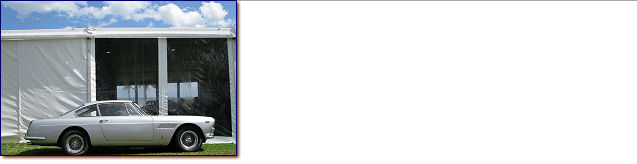

Ferrari 250 GTE 2+2 s/n 3999GT

Ferrari 250 GTE s/n 4101GT

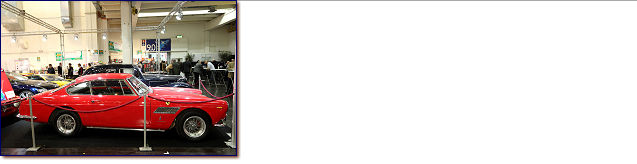

250 GTE 2+2 SII s/n 4101GT


Ferrari 250 GTE s/n 4105GT

01/... - engine installed in 2443GT

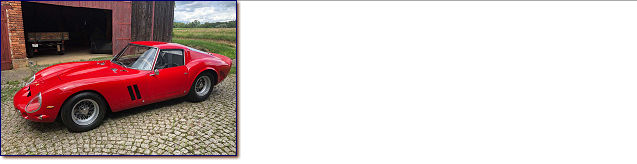

250 GTO '62 Mascherone based on 250 GTE-chassis s/n 4105GT
