Technical Specifications


Engine

Type

128F and 128E/63

Engine

Front longitudinal 60° V12,

light alloy cylinder block and head

Timing gear

2 valves per cylinder, single overhead camshaft per

cylinder bank

Bore and stroke

73 x 58.8 mm

Unitary and total displacement

246.10/2,953.21 cc

Compression ratio

8.8:1

Maximum power

240 bhp at 7,000 rpm

Fuel feed

3 twin choke Weber 40 DCL6 carbs

Ignition

single spark plug per cyclinder, 2 coils

Transmission

Dry, single-plate clutch,

4-speed gearbox + overdrive + reverse,

conventional differential


Chassis

Chassis type

508E

Chassis

Elliptical section steel tubes

Front suspension

Independent, unequal-length wishbones, coil springs

Rear suspension

Live axle, semi-elliptic leaf springs

Wheelbase, front and rear track

2,600 / 1,354 / 1,394 mm

Kerb weight

1,280 kg

Fuel tank

100 litres

Top Speed

230km/h


Total

302
 Previous page
 Next page
Up

Ferrari 250 GTE s/n 3535GT

.. - engine installed in 1549GT (250 GT PF Coupe)

Ferrari 250 GTE s/n 3537GT

250 GT SWB replica, rebodied 250 GTE 2+2, s/n 3437GT

Ferrari 250 GTE s/n 3541GT

Ferrari 250 GTE s/n 3543GT

250.GTE.3343GT.001

Ferrari 250 GTE s/n 3545GT

Ferrari 250 GTE s/n 3545GT

Ferrari 250 GTE s/n 3547GT

Ferrari 250 GTE s/n 3553GT

Ferrari 250 GTE s/n 3555GT

Ferrari 250 GTE 2+2 s/n 3455GT

Ferrari 250 GTE s/n 3561GT

Ferrari 400 Superamerica Coupe s/n 3361SA

Ferrari 250 GTE s/n 3563GT

09 - engine installed in 1023GT (250 GT PF Coupe)

Ferrari 250 GTE s/n 3567GT

Ferrari 250 GTE s/n 3569GT

250 GT Coupé Speciale Pininfarina s/n 3469GT

Ferrari 250 GTE s/n 3571GT

Ferrari 250 GTE s/n 3571GT

Ferrari 250 GTE s/n 3573GT

250 GTE s/n 3373GT

Ferrari 250 GTE s/n 3579GT

.. - engine 4397 (GTE)

Ferrari 250 GTE s/n 3583GT

Ferrari 250 GTE s/n 3585GT

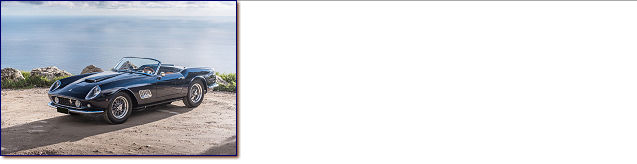

Ferrari 250 GT SWB California Spyder s/n 3185GT

Ferrari 250 GTE s/n 3587GT

Ferrari 250 GT SWB Berlinetta s/n 3487GT

Ferrari 250 GTE s/n 3591GT

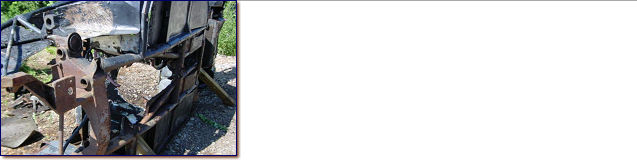

02/Aug/02 - frame auctioned

Ferrari 250 GTE s/n 3593GT

250 GTE s/n 3593GT

Ferrari 250 GTE s/n 3595GT

Ferrari 250 GTE s/n 3597GT

Ferrari 250 GTE 2+2 s/n 3597GT

Ferrari 250 GTE s/n 3601GT



Ferrari 250 GTE s/n 3603GT

250 GTO 64 replica s/n 3103GT

Ferrari 250 GTE s/n 3609GT

Ferrari 250 GTE s/n 3611GT

with Drogo body from 2735GT

.. - 275 GTB engine installed

Ferrari 250 GTE s/n 3611GT rebodied Drogo style, #3611 GT

Ferrari 250 GTE s/n 3617GT

Ferrari 250 GTE s/n 3619GT

Ferrari 250 GTE s/n 3219GT

Ferrari 250 GTE s/n 3623GT

Ferrari 250 GTE 2+2 s/n 3523GT

Ferrari 250 GTE s/n 3627GT

Ferrari 250 GTO s/n 3527GT

Ferrari 250 GTE s/n 3629GT

Ferrari 250 GTE s/n 3631GT

Ferrari 250 GTE s/n 3635GT

67 - engine installed in 2735GT (250 GT SWB)
94 - engine installed in 4487GT (250 GTE)

Ferrari 250 GT California Spider Replica s/n 2437GT

Ferrari 250 GTE s/n 3637GT

Ferrari 250 GTE 2+2 s/n 3637GT

Ferrari 250 GTE s/n 3641GT

Ferrari 250 GTE s/n 3643GT

Ferrari 250 GTE s/n 3649GT

Ferrari 250 GTE s/n 3651GT

250 GTO '62 s/n 3451GT

Ferrari 250 GTE s/n 3653GT

Ferrari 250 GTE s/n 3659GT

.. - engine installed in 3749GT

Ferrari 250 GTE s/n 3661GT

replica using engine 3661GT

replica using engine 3661GT

Ferrari 250 GTE s/n 3663GT

Ferrari 250 GTE s/n 3667GT

Ferrari 250 GTE s/n 3667GT

Ferrari 250 GTE s/n 3671GT

7. - rebodied as 250 GTO S1 Replica by Alain Garnier, F
7. - engine installed from 3115GT (250 GTE 2+2)


Ferrari 250 GTE s/n 3571GT

Ferrari 250 GTE s/n 3675GT

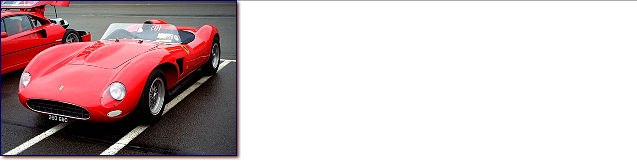

rebodied as 500 TRC style

500 TRC "replica", #3675 GT

Ferrari 250 GTE s/n 3679GT

Ferrari 250 GTE 2+2 s/n 3679GT

Ferrari 250 GTE s/n 3681GT

Ferrari 250 GTE s/n 3685GT

Ferrari 250 GT SWB California Spyder s/n 3185GT

Ferrari 250 GTE s/n 3689GT

Ferrari 250 GTE s/n 3691GT
