Technical Specifications


Engine

Type

128F and 128E/63

Engine

Front longitudinal 60° V12,

light alloy cylinder block and head

Timing gear

2 valves per cylinder, single overhead camshaft per

cylinder bank

Bore and stroke

73 x 58.8 mm

Unitary and total displacement

246.10/2,953.21 cc

Compression ratio

8.8:1

Maximum power

240 bhp at 7,000 rpm

Fuel feed

3 twin choke Weber 40 DCL6 carbs

Ignition

single spark plug per cyclinder, 2 coils

Transmission

Dry, single-plate clutch,

4-speed gearbox + overdrive + reverse,

conventional differential


Chassis

Chassis type

508E

Chassis

Elliptical section steel tubes

Front suspension

Independent, unequal-length wishbones, coil springs

Rear suspension

Live axle, semi-elliptic leaf springs

Wheelbase, front and rear track

2,600 / 1,354 / 1,394 mm

Kerb weight

1,280 kg

Fuel tank

100 litres

Top Speed

230km/h


Total

302
 Previous page
 Next page
Up

Ferrari 250 GTE s/n 3369GT

Ferrari 250 GTE s/n 3373GT

250 GTE s/n 3373GT

Ferrari 250 GTE s/n 3375GT

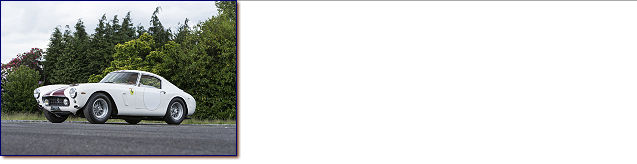

Ferrari 250 GT SWB Berlinetta s/n 3175GT

Ferrari 250 GTE s/n 3377GT

Ferrari 250 GTE s/n 3381GT

Ferrari 250 GTE s/n 3383GT

Ferrari 250 GTE s/n 3389GT

Ferrari 250 GTE s/n 3391GT

Ferrari 250 GTE s/n 3393GT

Ferrari 400 SA Superamerica s/n 2893SA

Ferrari 250 GTE s/n 3395GT

Ferrari 250 GTE s/n 3399GT

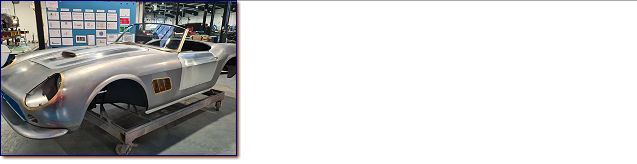

Ferrari 250 GT SWB California Spider s/n 3099GT


Ferrari 250 GTE s/n 3403GT

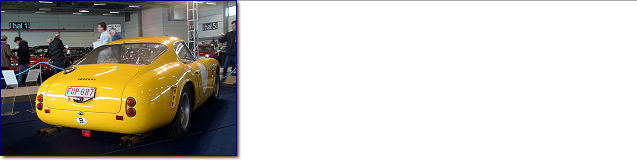

250 GTO 64 replica s/n 3103GT

Ferrari 250 GTE s/n 3405GT

9. - engine installed 3945GT (GTE)

Ferrari 250 GTE s/n 3411GT

67/before - engine installed in 1893GT 250 GT PF CAB SII

Ferrari 250 GTE s/n 3415GT

Ferrari 250 GT SWB replica created based on 4669GT (250 GTE 2+2) using s/n 3315GT

Ferrari 250 GTE s/n 3417GT

Ferrari 250 GTE s/n 3419GT

Ferrari 250 GTE s/n 3219GT

Ferrari 250 GTE s/n 3421GT

Ferrari 400 Superamerica s/n 3221SA

Ferrari 250 GTE s/n 3423GT

Ferrari 250 GTE s/n 3429GT

Ferrari 250 GTE s/n 3433GT

Ferrari 250 GTE s/n 3435GT

Ferrari 250 GTE s/n 3437GT

rebodied SWB Berlinetta style

250 GT SWB replica, rebodied 250 GTE 2+2, s/n 3437GT

Ferrari 250 GTE s/n 3439GT

Ferrari 250 GTE s/n 3441GT

03/... - engine swapped with 1969GT
(now engine 3441GT restamped 3409GT) is in 1969GT

Ferrari 250 GTE s/n 3447GT

Ferrari 250 GTE s/n 3455GT

Ferrari 250 GTE 2+2 s/n 3455GT

Ferrari 250 GTE s/n 3457GT

Ferrari 250 GTE s/n 2357GT

Ferrari 250 GTE s/n 3465GT

Ferrari 250 GTE s/n 3473GT

250 GTE s/n 3373GT

Ferrari 250 GTE s/n 3479GT

Ferrari 250 GTE s/n 3481GT

Ferrari 250 GTE s/n 3483GT

.. - rebodied as 250 GTO Series I
.. - without engine

Ferrari 250 GTE s/n 3485GT

Ferrari 250 GT SWB California Spyder s/n 3185GT

Ferrari 250 GTE s/n 3489GT

Ferrari 250 GTE s/n 3493GT

10/... - rebodied as SWB Berlinetta

Ferrari 250 GTE s/n 3495GT

Ferrari 250 GTE s/n 3497GT

250 GT PF s/n 3397GT

Ferrari 250 GTE s/n 3501GT



Ferrari 250 GTE s/n 3503GT

.. - rebodied as '62 250 GTO  Replica

250 GTO 64 replica s/n 3103GT

Ferrari 250 GTE s/n 3509GT

Ferrari 250 GTE s/n 3511GT

.. - rebodied as 250 gto, engine and transmission missing

Ferrari 250 GTE s/n 3515GT

.. - engine installed in 2721GT

Ferrari 250 GT SWB replica created based on 4669GT (250 GTE 2+2) using s/n 3315GT

Ferrari 250 GTE s/n 3519GT

Ferrari 250 GTE s/n 3219GT

Ferrari 250 GTE s/n 3521GT

Ferrari 400 Superamerica s/n 3221SA

Ferrari 250 GTE s/n 3523GT

Ferrari 250 GTE 2+2 s/n 3523GT

Ferrari 250 GTE s/n 3529GT

Ferrari 250 GTE s/n 3533GT
