Technical Specifications


Engine

Type

128F and 128E/63

Engine

Front longitudinal 60° V12,

light alloy cylinder block and head

Timing gear

2 valves per cylinder, single overhead camshaft per

cylinder bank

Bore and stroke

73 x 58.8 mm

Unitary and total displacement

246.10/2,953.21 cc

Compression ratio

8.8:1

Maximum power

240 bhp at 7,000 rpm

Fuel feed

3 twin choke Weber 40 DCL6 carbs

Ignition

single spark plug per cyclinder, 2 coils

Transmission

Dry, single-plate clutch,

4-speed gearbox + overdrive + reverse,

conventional differential


Chassis

Chassis type

508E

Chassis

Elliptical section steel tubes

Front suspension

Independent, unequal-length wishbones, coil springs

Rear suspension

Live axle, semi-elliptic leaf springs

Wheelbase, front and rear track

2,600 / 1,354 / 1,394 mm

Kerb weight

1,280 kg

Fuel tank

100 litres

Top Speed

230km/h


Total

302
 Previous page
 Next page
Up

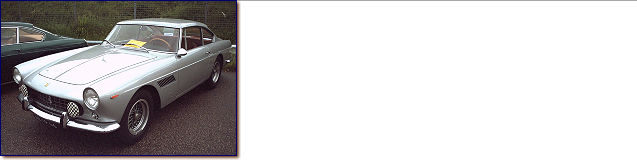

Ferrari 250 GTE s/n 3103GT

rebodied as 250 GTO '64

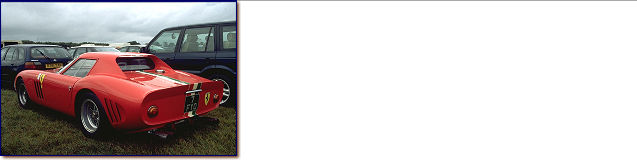

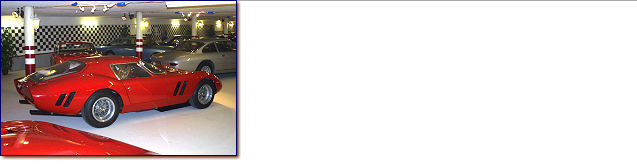

250 GTO 64 replica s/n 3103GT

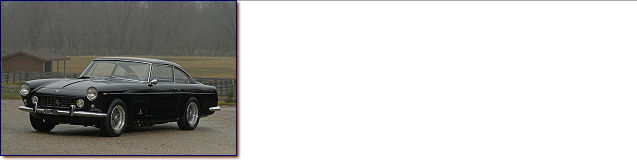

Ferrari 250 GTE s/n 3109GT

Ferrari 250 GT PF Cabriolet SII s/n 3009GT

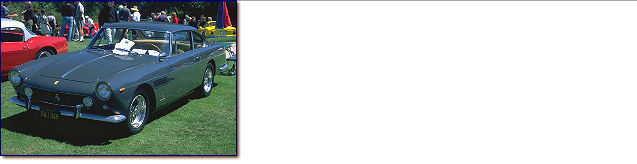

Ferrari 250 GTE s/n 3111GT

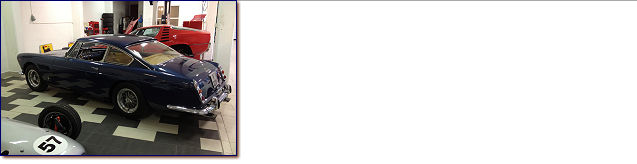

Ferrari 250 GTE s/n 3115GT

.. - rebodied as 250 GTO by Favre, Red/blue
.. - engine in 3671GT

250 GTE 2+2 SI s/n 2915GT

Ferrari 250 GTE s/n 3117GT

Ferrari 250 GTE s/n 3121GT

Ferrari 250 GT SWB California Spyder s/n 3021GT

Ferrari 250 GTE s/n 3123GT

Ferrari 250 GT Drogo rebody, s/n 2423GT

Ferrari 250 GTE s/n 3125GT

Ferrari 250 GTE s/n 3127GT

Ferrari 250 GT PF Cabriolet, s/n 2327GT

Ferrari 250 GTE s/n 3131GT

Ferrari 250 GTE s/n 3133GT

Ferrari 250 GTE s/n 3135GT

Ferrari 250 GTE s/n 3137GT

Ferrari 250 GTE s/n 3139GT
RHD

Ferrari 250 GTE s/n 3141GT

Ferrari 250 GTE s/n 3145GT

Ferrari 250 GT Cabriolet Series II s/n 2945GT of CPI Sportwagen GmbH

Ferrari 250 GTE s/n 3147GT

Ferrari 250 GTE s/n 3147GT

Ferrari 250 GTE s/n 3149GT

Ferrari 250 GT SWB Berlinetta s/n 2649GT

Ferrari 250 GTE s/n 3151GT

Ferrari 250 GTE s/n 3153GT

Ferrari 250 GTE s/n 3153GT

Ferrari 250 GTE s/n 3155GT

Ferrari 250 GTE s/n 3157GT

Ferrari 250 GTE s/n 2357GT

Ferrari 250 GTE s/n 3159GT

Ferrari 250 GTE s/n 3161GT

Ferrari 250 GTE s/n 3165GT

Ferrari 250 GTE s/n 3167GT

250 GTE s/n 3167GT

Ferrari 250 GTE s/n 3171GT

Ferrari 250 GTE s/n 3071GT

Ferrari 250 GTE s/n 3173GT

Ferrari 250 GT SWB Berlinetta s/n 3073GT

Ferrari 250 GTE s/n 3177GT

Ferrari 250 GTE s/n 3181GT

.. - rebodied TR style

Ferrari 250 GTE 2+2 s/n 3181GT - rebodied TR style

Ferrari 250 GTE s/n 3183GT

Ferrari 250 GTE s/n 3187GT

Ferrari 250 GTE s/n 3189GT

Ferrari 250 GTE s/n 3191GT

Ferrari 250 GTE s/n 3193GT

Ferrari 400 SA Superamerica s/n 2893SA

Ferrari 250 GTE s/n 3197GT

Ferrari 400 SA Aerodinamico Coupe s/n 3097SA/4031SA

Ferrari 250 GTE s/n 3199GT

Ferrari 250 GT SWB California Spider s/n 3099GT

Ferrari 250 GTE s/n 3201GT



Ferrari 250 GTE s/n 3203GT

250 GTO 64 replica s/n 3103GT

Ferrari 250 GTE s/n 3205GT

Ferrari 250 GTE s/n 3207GT

250 GTE 2+2, #3207 GT

Ferrari 250 GTE s/n 3209GT

Ferrari 250 GT PF Cabriolet SII s/n 3009GT

Ferrari 250 GTE s/n 3211GT

Ferrari 250 GTE s/n 3213GT

7. - parted out
.. - engine once installed in 4425GT (250 GT/L)
94 - rebodied as Drogo by Terry Hoyle

250 GTE “Drogo” Conversion red/red s/n 3213GT/3881 - Lot 122

Ferrari 250 GTE s/n 3215GT

250 GTE 2+2 SI s/n 2915GT

Ferrari 250 GTE s/n 3219GT

Ferrari 250 GTE s/n 3219GT

Ferrari 250 GTE s/n 3225GT

.. - engine installed in 2713GT

Ferrari 250 GTE s/n 3227GT

Ferrari 250 GTE s/n 3229GT

09/... - engine installed 6607GT (330 GT 2+2)

Ferrari 250 GT SWB Berlinetta s/n 2729GT

Ferrari 250 GTE s/n 3231GT
