Technical Specifications


Engine

Type

128F and 128E/63

Engine

Front longitudinal 60° V12,

light alloy cylinder block and head

Timing gear

2 valves per cylinder, single overhead camshaft per

cylinder bank

Bore and stroke

73 x 58.8 mm

Unitary and total displacement

246.10/2,953.21 cc

Compression ratio

8.8:1

Maximum power

240 bhp at 7,000 rpm

Fuel feed

3 twin choke Weber 40 DCL6 carbs

Ignition

single spark plug per cyclinder, 2 coils

Transmission

Dry, single-plate clutch,

4-speed gearbox + overdrive + reverse,

conventional differential


Chassis

Chassis type

508E

Chassis

Elliptical section steel tubes

Front suspension

Independent, unequal-length wishbones, coil springs

Rear suspension

Live axle, semi-elliptic leaf springs

Wheelbase, front and rear track

2,600 / 1,354 / 1,394 mm

Kerb weight

1,280 kg

Fuel tank

100 litres

Top Speed

230km/h


Total

302
 Previous page
 Next page
Up

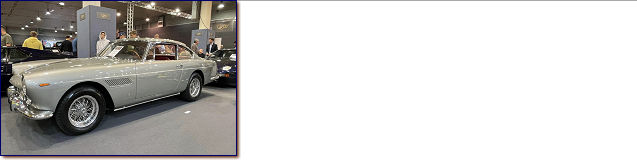

Ferrari 250 GTE s/n 2923GT

Ferrari 250 GT Drogo rebody, s/n 2423GT

Ferrari 250 GTE s/n 2925GT

Ferrari 250 GTE s/n 2927GT

Ferrari 250 GT PF Cabriolet, s/n 2327GT

Ferrari 250 GTE s/n 2929GT

.. - engine installed in 1865GT (250 GT Cabriolet PF S2)

Ferrari 250 GT SWB Berlinetta s/n 2729GT

Ferrari 250 GTE s/n 2949GT

Ferrari 250 GT SWB Berlinetta s/n 2649GT

Ferrari 250 GTE s/n 2951GT

Ferrari 250 GTE s/n 2953GT

1961 Ferrari 250 GTE s/n 2753GT

Ferrari 250 GTE s/n 2957GT

Ferrari 250 GTE s/n 2357GT

Ferrari 250 GTE s/n 2959GT

Ferrari 250 GT PF Cabriolet series II, s/n 2559GT

Ferrari 250 GTE s/n 2961GT

Ferrari 250 GTE s/n 2963GT

05/... - engine installed in 0755GT

250 GT SWB Berlinetta s/n 2863GT

Ferrari 250 GTE s/n 2965GT

GTE 2+2 SIII stamped 2965GT see 4889GT

Ferrari 250 GT SWB Berlinetta s/n 2765GT

Ferrari 250 GTE s/n 2967GT

Ferrari 250 GTE s/n 2969GT

Ferrari 250 GT SWB Berlinetta, s/n 2669GT

Ferrari 250 GTE s/n 2971GT

Ferrari 250 GTE s/n 2975GT

Ferrari 250 GTE s/n 2977GT

Ferrari 250 GTE s/n 2979GT

250 GTE 2+2 SI s/n 2379GT

Ferrari 250 GTE s/n 2981GT

Turin Show Car

Ferrari 250 GTE s/n 2983GT

Ferrari 250 GTE s/n 2991GT

Ferrari 250 GTE s/n 2993GT

Ferrari 400 SA Superamerica s/n 2893SA

Ferrari 250 GTE s/n 2995GT

Ferrari 250 GTE s/n 2995GT

Ferrari 250 GTE s/n 2997GT

2001/apr - engine installed in 2021GT

Ferrari 250 GTE s/n 2999GT

Ferrari 250 GTE s/n 3001GT

.. - rebodied as GTO Replica by Favre
.. - engine from 4145GT installed

Ferrai 250 GTE 2+2 s/n 2901GT



Ferrari 250 GTE s/n 3003GT

Ferrari 250 GTE s/n 3011GT

Ferrari 250 GTE s/n 3013GT

Ferrari 250 GTE s/n 2913GT

Ferrari 250 GTE s/n 3015GT

250 GTE 2+2 SI s/n 2915GT

Ferrari 250 GTE s/n 3017GT

Ferrari 250 GTE s/n 3019GT

Ferrari 250 GTE s/n 3023GT

Ferrari 250 GT Drogo rebody, s/n 2423GT

Ferrari 250 GTE s/n 3025GT

Ferrari 250 GTE s/n 3027GT

Ferrari 250 GT PF Cabriolet, s/n 2327GT

Ferrari 250 GTE s/n 3029GT

Ferrari 250 GT SWB Berlinetta s/n 2729GT

Ferrari 250 GTE s/n 3031GT

Ferrari 250 GTE s/n 3041GT

rebodied as 250 GT SWB

Ferrari 400 SWB Superamerica Coupé Aerodinamico s/n 2841SA

Ferrari 250 GTE s/n 3043GT

Ferrari 250 GTE s/n 3045GT

Ferrari 250 GTE s/n 3047GT

07/jul - engine 6797GT installed

Ferrari 250 GTE s/n 3049GT

Ferrari 250 GT SWB Berlinetta s/n 2649GT

Ferrari 250 GTE s/n 3061GT

Ferrari 250 GTE s/n 3063GT

250 GT SWB Berlinetta s/n 2863GT

Ferrari 250 GTE s/n 3065GT

Ferrari 250 GT SWB Berlinetta s/n 2765GT

Ferrari 250 GTE s/n 3069GT

73 - converted to 250 GT SWB Berlinetta by Fantuzzi
.. - engine 3069GT installed in 250 GT/L s/n 5685GT

Ferrari 250 GT SWB Berlinetta, s/n 2669GT

Ferrari 250 GTE s/n 3071GT

Ferrari 250 GTE s/n 3071GT

Ferrari 250 GTE s/n 3075GT

Ferrari 250 GTE s/n 3079GT

Ferrari 250 GTE s/n 3081GT

Ferrari 250 GTE s/n 3083GT
