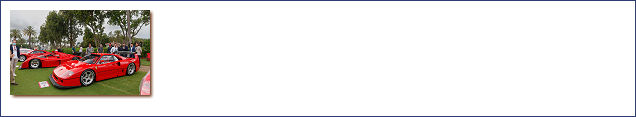

F40 LM s/n 79891

79890

F40

LM

 Previous page
 Next page
Up

Technical Specifications


Engine

Type

rear, longitudinal 90° V8

Bore/stroke

82 x 69.5 mm

Unitary displacement

367.03 cc

Total displacement

2936.25 cc

Compression ratio

7,7:1

Maximum power

515 kW (700 hp) at 8100 rpm

Power per litre

238 hp/l

Maximum torque

-

Valve actuation

twin overhead camshafts per bank, four valves per cylinder

Fuel feed

Weber-Marelli electronic injection, twin turbos

Ignition

Weber-Marelli electronic, single spark plug per cylinder

Lubrication

dry sump

Clutch

multi-plate


Chassis

Frame

tubular steel with composite elements

Front suspension

independent, unequal-length wishbones,

coil springs over telescopic shock absorbers, anti-roll bar

Rear suspension

independent, unequal-length wishbones,

coil springs over telescopic shock absorbers, anti-roll bar

Brakes

discs

Transmission

5-speed + reverse

Steering

rack-and-pinion

Fuel tank

capacity 120 litres

Front tyres

24.5-12.5-17

Rear tyres

27.5-14.5-17


Bodywork

Type

two-seater, berlinetta

Length

4535 mm

Width

1980 mm

Height

1150 mm

Wheelbase

2450 mm

Front track

1580 mm

Rear track

1545 mm

Weight

1040 kg (with liquids)



Total

19 + 5 GTE

In fact, the first two examples built were known as F40 LM and featured a more powerful engine, modified suspension and special aerodynamics.



97881

F40

Competizione


Ferrari F333 SP s/n 016

95449

F40

Competizione


F40 LM s/n 88522

88520

F40

Competizione


88513

F40

Competizione


F40 LM s/n 79891

79891

F40

Competizione


F40 s/n 74045

74045

F40

LM

Conversion, LM Prototipo


95448

F40

Competizione


92238

F40

Competizione


333 SP #012b

92237

F40

Competizione


92236

F40

Competizione


Ferrari 333 SP s/n 010

92235

F40

Competizione


Ferrari 250 GT SWB Berlinetta s/n 1539GT

88524

F40

Competizione


Ferrari 250 GT SWB Berlinetta s/n 1539GT

88523

F40

Competizione


F40 LM s/n 88522

88522

F40

Competizione


333 SP s/n 006

88521

F40

Competizione


The 333 SP s/n 018 of Wayne Taylor, Alex Caffi and Juan Manuel Fangio II was the best Ferrari at Sebring and finished 6th

97893

F40

Competizione


F333 SP s/n 019

97904

F40

Competizione


Good luck for the 333 SP s/n 017 of Max Anglelli, Didier de Radigues and Anthony Lazzaro

99893

F40

Competizione


The 333 SP s/n 030 on the starting grid
