Technical Specifications


Engine

Type

front, longitudinal 60° V12

Bore/stroke

81 x 71 mm

Unitary displacement

365.86 cc

Total displacement

4390.35 cc

Compression ratio

8.8 : 1

Maximum power

235 kW (320 hp) at 6600 rpm

Power per litre

73 hp/l

Valve actuation

single overhead camshaft per bank,

two valves per cylinder

Fuel feed

three Weber 40 DFI/5 carburettors

Ignition

single spark plug per cylinder, two coils

Lubrication

wet sump

Clutch

single-plate


Chassis

Frame

tubular steel

Front suspension

independent, unequal-length wishbones,

coil springs over telescopic shock absorbers, anti-roll bar

Rear suspension

independent, unequal-length wishbones,

coil springs over telescopic shock absorbers, anti-roll bar

Brakes

discs

Transmission

5-speed + reverse

Steering

worm and roller

Fuel tank

capacity 90 litres

Front tyres

205 x 14

Rear tyres

205 x 14


Bodywork


Type

two-seater coupé

Length

4470 mm

Width

1670 mm

Height

1300 mm

Wheelbase

2400 mm

Front track

1401 mm

Rear track

1417 mm

Weight

1350 kg (dry)


Performance


Top speed

250 km/h



Total

150
 Previous page
 Next page
Up

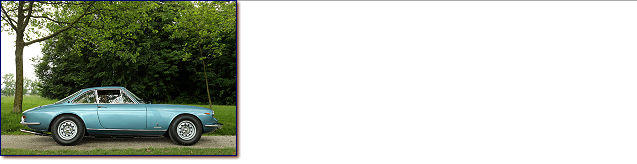

Ferrari 365 GTC s/n 12117

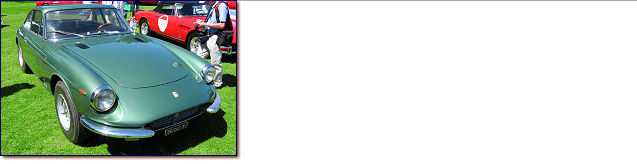

Ferrari 365 GTC s/n 12119

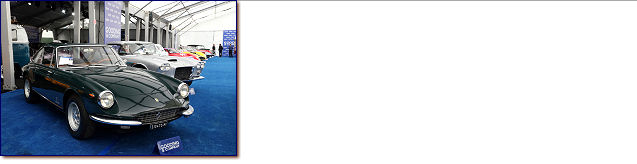

Ferrari 365 GTC s/n 12123
