Technical Specifications


Engine

Type

front, longitudinal 60° V12

Bore/stroke

81 x 71 mm

Unitary displacement

365.86 cc

Total displacement

4390.35 cc

Compression ratio

8.8 : 1

Maximum power

235 kW (320 hp) at 6600 rpm

Power per litre

73 hp/l

Valve actuation

single overhead camshaft per bank,

two valves per cylinder

Fuel feed

three Weber 40 DFI/5 carburettors

Ignition

single spark plug per cylinder, two coils

Lubrication

wet sump

Clutch

single-plate


Chassis

Frame

tubular steel

Front suspension

independent, unequal-length wishbones,

coil springs over telescopic shock absorbers, anti-roll bar

Rear suspension

independent, unequal-length wishbones,

coil springs over telescopic shock absorbers, anti-roll bar

Brakes

discs

Transmission

5-speed + reverse

Steering

worm and roller

Fuel tank

capacity 90 litres

Front tyres

205 x 14

Rear tyres

205 x 14


Bodywork


Type

two-seater coupé

Length

4470 mm

Width

1670 mm

Height

1300 mm

Wheelbase

2400 mm

Front track

1401 mm

Rear track

1417 mm

Weight

1350 kg (dry)


Performance


Top speed

250 km/h



Total

150
 Previous page
 Next page
Up


Ferrari 365 GTC s/n 12303

Ferrari 365 GTC s/n 12311

Ferrari 365 GTC s/n 12315

Ferrari 365 GTC s/n 12321

Ferrari 365 GT 2+2 s/n 11633

Ferrari 365 GTC s/n 12325

Ferrari 365 GTC s/n 12325

Ferrari 365 GTC s/n 12329

Ferrari 365 GTC s/n 12335

365 GTC s/n 12135

Ferrari 365 GTC s/n 12339

Ferrari 365 GTC s/n 12343

Ferrari 365 GTC s/n 12347

Ferrari 365 GTC s/n 12351

Ferrari 365 GTC s/n 12355

Ferrari 365 GTC s/n 12359

365 GTC s/n 12359

Ferrari 365 GTC s/n 12363

365 GTS s/n 12163 with rare hardtop (originally painted black)

Ferrari 365 GTC s/n 12367

Ferrari 365 GTC s/n 12371

Ferrari 365 GTC s/n 12375

Ferrari 365 GTC, s/n 12375

Ferrari 365 GTC s/n 12379

Ferrari 365 GTC s/n 12079, Ferrari 330GT 2+2 s/n 8025GT

Ferrari 365 GTC s/n 12383

Ferrari 330 GTC s/n 11183

Ferrari 365 GTC s/n 12387

Ferrari 365 GTC, s/n 12387

Ferrari 365 GTC s/n 12391

Ferrari 365 GTC s/n 12395

Ferrari 330 GTC s/n 11395

Ferrari 365 GTC s/n 12399

365 GTC s/n 12099


Ferrari 365 GTC s/n 12403

Ferrari 365 GTC s/n 12407

Ferrari 365 GTC s/n 12411

Ferrari 365 GTC s/n 12415

Ferrari 365 GTC s/n 12421

Ferrari 365 GT 2+2 s/n 11633

Ferrari 365 GTC s/n 12425

Ferrari 365 GTC s/n 12325

Ferrari 365 GTC s/n 12429

Ferrari 365 GTC s/n 12433

Ferrari 365 GTC s/n 12437

Ferrari 330 GTC s/n 11137

Ferrari 365 GTC s/n 12439

GTS Conversion

Ferrari 365 GTC s/n 12441

Ferrari 330 GTC s/n 11441

Ferrari 365 GTC s/n 12443

Ferrari 365 GTC s/n 12447

365 GTC s/n 12447

Ferrari 365 GTC s/n 12449

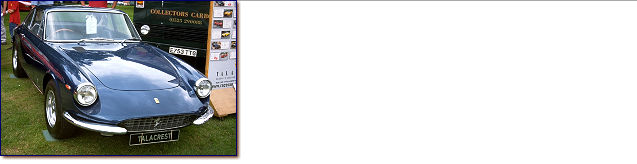

365 GTC s/n 12449 of Talacrest Ltd.
