Technical Specifications


Engine

213

Type

front, longitudinal 60° V12

Bore/stroke

77 x 58.8 mm

Unitary displacement

273.81 cc

Total displacement

3285.72 cc

Compression ratio

9.2 : 1

Maximum power

206 kW (280 hp) at 7600 rpm

239 hp 7000 - 77x58 - 3286 - 6507


Valve actuation

single overhead camshaft per bank

two valves per cylinder

Fuel feed

three or six 40 Weber DCN/3 carburettors

Weber 6*40 DCN3

Weber 6*40 DCNG

Weber 3*40 DCZ6

Ignition

single spark plug per cylinder, two coils

Lubrication

wet sump

Clutch

single-plate


Chassis

563

Frame

tubular steel

Front suspension

independent, unequal-length wishbones,

coil springs over telescopic shock absorbers,

anti-roll bar

Rear suspension

independent, unequal-length wishbones,

coil springs over telescopic shock absorbers,

anti-roll bar

Brakes

discs

Transmission

5-speed + reverse

Steering

worm and roller

Fuel tank

capacity 94 litres

Tyres


Front

  195 or 205 x 14

Rear

  195 or 205 x 14


Borrani

RW 3847 - 6-1/2" x 14" 32

RW 4039 7" x 14" 32

Compagnolo/starburst

6-1/2" x 14"


Bodywork

Type

two-seater berlinetta

Length

4325 mm

Width

1725 mm

Height

1245 mm

Wheelbase

2400 mm

Front track

1377 mm

Rear track

  1393 mm

Kerb weight

1100 kg


Performance


Top speed

258 km/h


Total

448
 Previous page
 Next page
Up

Ferrari 275 GTB s/n 07299

LHD
3 carb
steel

Ferrari 275 GTB s/n 7199

Ferrari 275 GTB s/n 07307

RHD
3 carb
alloy

rebodied, spyder with headrest

Ferrari 275 GTB s/n 07107

Ferrari 275 GTB s/n 07311

LHD
3 carb
steel

Ferrari 275 GTB/2 "NART" Spyder conversion, s/n 7211

Ferrari 275 GTB s/n 07315

LHD
3 carb
steel

275 GTB/2 Shortnose s/n 07315

Ferrari 275 GTB s/n 07319

LHD
3 carb
steel


Ferrari 275 GTB s/n 07327

LHD
3 carb
steel

Ferrari 275 GTB s/n 07333

LHD
3 carb
steel

Ferrari 275 GTB s/n 07341

LHD
3 carb
steel

Ferrari 275 GTB s/n 07347

LHD
3 carb
steel


Ferrari 275 GTB s/n 07351

LHD
3 carb
steel

Ferrari 275 GTB Shortnose s/n 07351

Ferrari 275 GTB s/n 07357

LHD
3 carb
steel

Ferrari 275 GTB s/n 07365

LHD
3 carb
steel

Ferrari 275 GTB s/n 07371

LHD
3 carb
steel

Ferrari 275 GTB/C series I, s/n 07271

Ferrari 275 GTB s/n 07373

LHD
3 carb
steel

raced

Ferrari 275 GTB s/n 07381

LHD
3 carb
steel

Ferrari 275 GTB s/n 07385

LHD
3 carb
steel

Ferrari 275 GTB s/n 07391

LHD
3 carb
steel

Ferrari 275 GTB s/n 07397

RHD
6 carb
steel

Ferrari 275 GTB/6C s/n 07397

Ferrari 275 GTB s/n 07401

LHD
6 carb
steel


275 GTB s/n 06901


Ferrari 275 GTB s/n 07413

RHD
6 carb
steel

Ferrari 275 GTB s/n 07425

LHD
3 carb
steel

Ferrari 275 GTB s/n 07431

LHD
6 carb
steel

275 GTS s/n 07331

Ferrari 275 GTB s/n 07443

LHD
3 carb
steel

Ferrari 275 GTB s/n 07447

LHD
3 carb
steel

Ferrari 275 GTB s/n 07451

LHD
3 carb
steel

Ferrari 275 GTB Shortnose s/n 07351

Ferrari 275 GTB s/n 07459

LHD
3 carb
steel


Ferrari 275 GTB, s/n 7459

Ferrari 275 GTB s/n 07463

LHD
3 carb
steel

9. - restored by Piet Roelofs with an all new alloy body by Hietbrink

Ferrari 275 GTB s/n 07463 - rebodied in alloy as long nose

Ferrari 275 GTB s/n 07473

LHD
3 carb
steel

Ferrari 275 GTB s/n 07485

LHD
3 carb
steel

Ferrari 275 GTB s/n 07491

LHD
3 carb
steel

Ferrari 275 GTB s/n 07495

LHD
3 carb
alloy


Ferrari 275 GTB s/n 07503

LHD
3 carb
steel

275 GTS s/n 07203, displayed by Talacrest Ltd.

Ferrari 275 GTB s/n 07509

LHD
3 carb
steel

Ferrari 250 GT/L s/n 5045GT

Ferrari 275 GTB s/n 07511

LHD
3 carb
steel

rolled and parted out

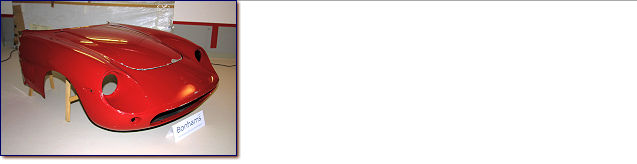

Ferrari 275 GTB short nose front section s/n 7511

Ferrari 275 GTB s/n 07523

RHD
3 carb
steel


Ferrari 275 GTB s/n 07529

LHD
3 carb
steel

engine in 7227 275 GTS


Ferrari 330 GT 2+2 Series II s/n 7029GT

Ferrari 275 GTB s/n 07535

LHD
3 carb
steel

Ferrari 275 GTS s/n 07235

Ferrari 275 GTB s/n 07539

LHD
6 carb
steel


Ferrari 275 GTB s/n 07239

Ferrari 275 GTB s/n 07551

LHD
6 carb
steel

Ferrari 275 GTB Shortnose s/n 07351

Ferrari 275 GTB s/n 07555

LHD
3 carb
steel

Ferrari 275 GTB s/n 07561

LHD
3 carb
steel

275 GTB/2 Longnose Spyder Conversion s/n 07061

Ferrari 275 GTB s/n 07565

LHD
3 carb
steel

Ferrari 275 GTB s/n 07579

LHD
3 carb
steel

275 GTB/2 Shortnose s/n 07579

Ferrari 275 GTB s/n 07587

LHD
3 carb
steel

parted out

Ferrari 275 GTB s/n 07593

LHD
3 carb
steel

275 GTS s/n 7493

Ferrari 275 GTB s/n 07597

RHD
6 carb
steel

Ferrari 275 GTB s/n 07597


Ferrari 275 GTB s/n 07603

LHD
3 carb
steel

Spyder Conversion

Ferrari 275 GTB s/n 07603 Spyder conversion

Ferrari 275 GTB s/n 07609

LHD
3 carb
steel

Ferrari 250 GT/L s/n 5045GT

Ferrari 275 GTB s/n 07617

LHD
3 carb
steel

Ferrari 275 GTB s/n 07617

Ferrari 275 GTB s/n 07629

LHD
3 carb
steel

Ferrari 330 GT 2+2 Series II s/n 7029GT
