Technical Specifications


Engine

213

Type

front, longitudinal 60° V12

Bore/stroke

77 x 58.8 mm

Unitary displacement

273.81 cc

Total displacement

3285.72 cc

Compression ratio

9.2 : 1

Maximum power

206 kW (280 hp) at 7600 rpm

239 hp 7000 - 77x58 - 3286 - 6507


Valve actuation

single overhead camshaft per bank

two valves per cylinder

Fuel feed

three or six 40 Weber DCN/3 carburettors

Weber 6*40 DCN3

Weber 6*40 DCNG

Weber 3*40 DCZ6

Ignition

single spark plug per cylinder, two coils

Lubrication

wet sump

Clutch

single-plate


Chassis

563

Frame

tubular steel

Front suspension

independent, unequal-length wishbones,

coil springs over telescopic shock absorbers,

anti-roll bar

Rear suspension

independent, unequal-length wishbones,

coil springs over telescopic shock absorbers,

anti-roll bar

Brakes

discs

Transmission

5-speed + reverse

Steering

worm and roller

Fuel tank

capacity 94 litres

Tyres


Front

  195 or 205 x 14

Rear

  195 or 205 x 14


Borrani

RW 3847 - 6-1/2" x 14" 32

RW 4039 7" x 14" 32

Compagnolo/starburst

6-1/2" x 14"


Bodywork

Type

two-seater berlinetta

Length

4325 mm

Width

1725 mm

Height

1245 mm

Wheelbase

2400 mm

Front track

1377 mm

Rear track

  1393 mm

Kerb weight

1100 kg


Performance


Top speed

258 km/h


Total

448
 Previous page
 Next page
Up

Ferrari 275 GTB s/n 06973

LHD
3 carb
steel

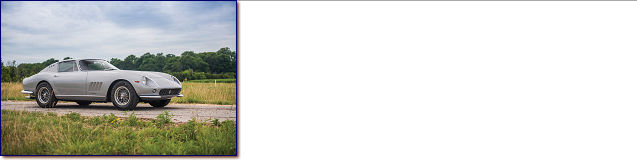

500 Superfast s/n 6673SF

Ferrari 275 GTB s/n 06983

LHD
3 carb
steel

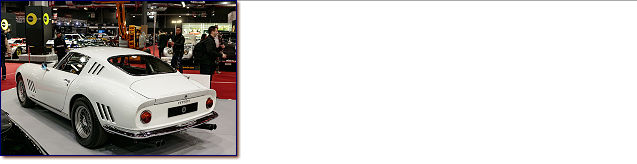

275 GTB s/n 6683

Ferrari 275 GTB s/n 06995

LHD
3 carb
steel

Ferrari 275 GTB s/n 07001

LHD
3 carb
steel

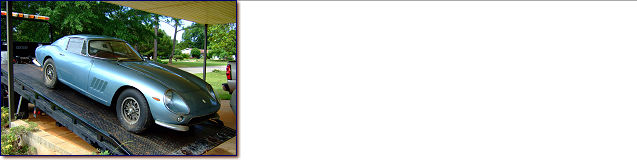

275 GTB s/n 06901



Ferrari 275 GTB s/n 07003

LHD
3 carb
steel

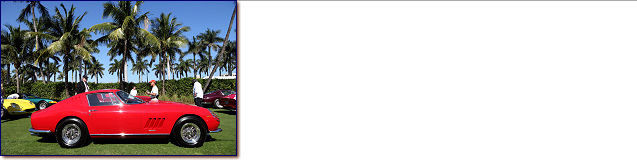

275 GTB/2 Shortnose s/n 06703

Ferrari 275 GTB s/n 07009

LHD
3 carb
steel

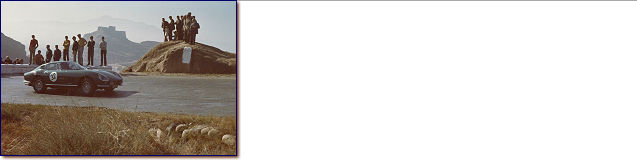

Ferrari 250 GT/L s/n 5045GT

Ferrari 275 GTB s/n 07037

LHD
3 carb
steel

Ferrari 275 GTB s/n 07045

LHD
6 carb
steel

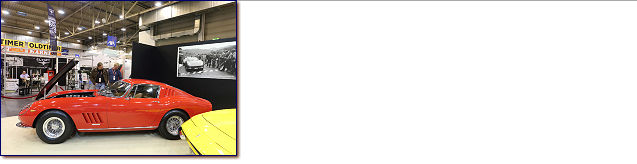

Ferrari 275 GTB s/n 07045

Ferrari 275 GTB s/n 07053

LHD
3 carb
steel

Ferrari 275 GTB s/n 07061

LHD
3 carb
steel

N.A.R.T. Spyder Conversion

275 GTB/2 Longnose Spyder Conversion s/n 07061

Ferrari 275 GTB  s/n 07067

LHD
3 carb
steel

Ferrari 275 GTS s/n 06867

Ferrari 275 GTB s/n 07073

LHD
3 carb
steel

500 Superfast s/n 6673SF

Ferrari 275 GTB s/n 07075

LHD
6 carb
steel

Ferrari 275 GTB s/n 07085

LHD
6 carb
steel


Ferrari 275 GTB Competizione Speciale s/n 06885

Ferrari 275 GTB s/n 07093

LHD
3 carb
steel

Ferrari 275 GTB s/n 07097

LHD
3 carb
steel

Ferrari 275 GTB s/n 07101

LHD
3 carb
steel

275 GTB s/n 06901


Ferrari 275 GTB s/n 07107

LHD
3 carb
steel

Ferrari 275 GTB s/n 07107

Ferrari 275 GTB s/n 07109

LHD
3 carb
steel

Ferrari 250 GT/L s/n 5045GT

Ferrari 275 GTB s/n 07111

LHD
3 carb
steel

Ferrari 275 GTB s/n 07117

LHD
3 carb
steel


Ferrari 275 GTB s/n 06617

Ferrari 275 GTB s/n 07127

RHD
6 carb
steel

Ferrari 275 GTB s/n 07135

LHD
3 carb
steel


Ferrari 275 GTB s/n 07135

Ferrari 275 GTB s/n 07145

RHD
3 carb
steel

275 GTB s/n 7147

Ferrari 275 GTB s/n 07147

LHD
3 carb
steel


275 GTB s/n 7147

Ferrari 275 GTB s/n 07155

RHD
6 carb
steel


Ferrari 275 GTB s/n 07159

LHD
3 carb
steel

Ferrari 275 GTB s/n 07165

LHD
3 carb
steel

Ferrari 275 GTB s/n 07169

RHD
6 carb
steel

Ferrari 330 GT s/n 6969GT

Ferrari 275 GTB s/n 07173

RHD
6 carb
steel


Ferrari 275 GTB s/n 07177

LHD
6 carb
steel

Ferrari 275 GTB s/n 07181

LHD
3 carb
steel

Ferrari 275 GTB s/n 07193

LHD
6 carb
steel

Ferrari 275 GTB s/n 07197

LHD
3 (6) carb
steel


Ferrari 275 GTB s/n 07197

Ferrari 275 GTB s/n 07199

RHD
3 carb
steel


Ferrari 275 GTB s/n 7199

Ferrari 275 GTB s/n 07207

LHD
3 carb
steel

rebodied in alloy

Ferrari 275 GTB s/n 07107

Ferrari 275 GTB s/n 07211

LHD
3 carb
steel

N.A.R.T. Spyder Conversion

Ferrari 275 GTB/2 "NART" Spyder conversion, s/n 7211

Ferrari 275 GTB s/n 07221

LHD
3 carb
steel

Ferrari 275 GTB s/n 07223

LHD
3 carb
steel

Ferrari 275 GTB s/n 07233

LHD
3 carb
steel

Ferrari 330 GT 2+2 s/n 6533GT - Lot 124  Sold $16500

Ferrari 275 GTB s/n 07237

LHD
3 carb
steel

Ferrari 275 GTB s/n 07239

LHD
3 (6) carb
steel

Ferrari 275 GTB s/n 07239

Ferrari 275 GTB s/n 07241

LHD
6 carb
steel


Ferrari 275 GTB s/n 07243

LHD
3 carb
steel

Ferrari 275 GTB s/n 07247

LHD
6 carb
steel


Ferrari 275 GTB s/n 07247

Ferrari 275 GTB s/n 07249

LHD
3 carb
steel

Ferrari 275 GTB 'short nose' s/n 07249

Ferrari 275 GTB s/n 07261

LHD
3 carb
steel

275 GTB/2 Longnose Spyder Conversion s/n 07061

Ferrari 275 GTB s/n 07263

LHD
3 carb
steel

Ferrari 275 GTB s/n 07269

LHD
6 (3) carb
steel

Ferrari 275 GTB s/n 07269

Ferrari 275 GTB s/n 07295

LHD
3 carb
steel
