Technical Specifications


Engine

Type

128F and 128E/63

Engine

Front longitudinal 60° V12,

light alloy cylinder block and head

Timing gear

2 valves per cylinder, single overhead camshaft per

cylinder bank

Bore and stroke

73 x 58.8 mm

Unitary and total displacement

246.10/2,953.21 cc

Compression ratio

8.8:1

Maximum power

240 bhp at 7,000 rpm

Fuel feed

3 twin choke Weber 40 DCL6 carbs

Ignition

single spark plug per cyclinder, 2 coils

Transmission

Dry, single-plate clutch,

4-speed gearbox + overdrive + reverse,

conventional differential


Chassis

Chassis type

508E

Chassis

Elliptical section steel tubes

Front suspension

Independent, unequal-length wishbones, coil springs

Rear suspension

Live axle, semi-elliptic leaf springs

Wheelbase, front and rear track

2,600 / 1,354 / 1,394 mm

Kerb weight

1,280 kg

Fuel tank

100 litres

Top Speed

230km/h


Total

302
 Previous page
 Next page
Up

Ferrari 250 GTE s/n 3971GT

250 GT SWB Nembo Spyder s/n 3771GT

Ferrari 250 GTE s/n 3973GT

250 GTE s/n 3837GT

Ferrari 250 GTE s/n 3975GT

250 GTE s/n 3975GT from 1965 to 1968 owned by the Moinade family

Ferrari 250 GTE s/n 3977GT

.. - engine installed in 1087GT

Ferrari 250 GTE s/n 3979GT

Ferrari 250 GTE 2+2 s/n 3679GT

Ferrari 250 GTE s/n 3981GT

rebodied as 250 TR

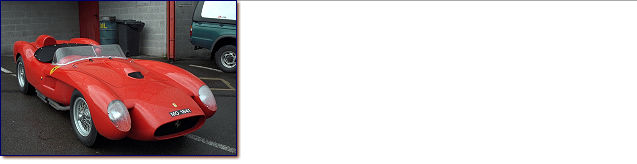

250 TR replica, based on a 250 GTE 2+2, s/n 3981GT

Ferrari 250 GTE s/n 3983GT

Ferrari 250 GTE s/n 3985GT

Ferrari 250 GTE s/n 3989GT

Ferrai 250 GTE 2+2 s/n 3989GT

Ferrari 250 GTE s/n 3991GT

Ferrari 250 GTE s/n 3993GT

250 GTE s/n 3593GT

Ferrari 250 GTE s/n 3997GT

88 - engine in 1087 (250 Gt Fantuzzi speciale)

Ferrari 250 GTE 2+2 s/n 3597GT

Ferrari 250 GTE s/n 3999GT

in Polizia Stradale livre

Ferrari 250 GTE 2+2 s/n 3999GT

Ferrari 250 GTE s/n 4001GT

Ferrari 250 GTE 2+2 SI s/n 3701GT



Ferrari 250 GTE s/n 4003GT

8. - rebodied as GTO Replica by William Favre
../... - engine installed in 4333GT

Ferrari 250 GTE s/n 4005GT

Ferrari 250 GTE s/n 4007GT

.. - rebodied as LM Replica

Ferrari 250 GTE s/n 4009GT

Nürburgring 1000 km 1963 The Swiss Walter and Müller drove the 250GTO s/n 3909GT

Ferrari 250 GTE s/n 4011GT

Ferrari 250 GTE s/n 3611GT rebodied Drogo style, #3611 GT

Ferrari 250 GTE s/n 4015GT

SWB replica once stamped 3565GT based on 4015GT

Ferrari 250 GTE s/n 4017GT

Ferrai 250 GTE 2+2 s/n 3817GT

Ferrari 250 GTE s/n 4019GT

Rebodied Zagato style

Ferrari 250 GTE s/n 4019GT rebodied as Berlinetta Zagato

Ferrari 250 GTE s/n 4021GT

Ferrari 400 Superamerica s/n 3621SA

Ferrari 250 GTE s/n 4023GT

Ferrari 250 GTE s/n 4025GT

250 GT Cabriolet Series II s/n 3525GT

Ferrari 250 GTE s/n 4027GT

Ferrari 250 GTE s/n 4029GT

250 GT SWB s/n 3829GT

Ferrari 250 GTE s/n 4033GT

Ferrari 250 GTE s/n 4035GT

Ferrari 250 GTE s/n 4039GT

.. - engine installed in 2701GT (250 GT SWB)

250 GTE s/n 3839GT GTO Replica by Favre

Ferrari 250 GTE s/n 4041GT

Ferrari 250 GTE s/n 4043GT

Ferrari 250 GTE s/n 4045GT

.. - rebodied TR59 style

Ferrari 250 GT PF Cabriolet S.II s/n 3645 GT - Lot 104

Ferrari 250 GTE s/n 4047GT

Ferrari 250 GTE s/n 4049GT

Ferrari 250 GTE s/n 4055GT

Ferrari 250 GT PF S2 Cabriolet s/n 3655GT & 212 Touring Barchetta s/n 0158ED

Ferrari 250 GTE s/n 4061GT

Ferrari 250 GTE s/n 4063GT

Ferrari 250 GTE s/n 4067GT

Ferrari 250 GTE 2+2 S2 s/n 4067GT

Ferrari 250 GTE s/n 4069GT

Ferrari 250 GTE s/n 4071GT

250 GT SWB Nembo Spyder s/n 3771GT

Ferrari 250 GTE s/n 4073GT

250 GTE s/n 3837GT

Ferrari 250 GTE s/n 4075GT

250 GTE s/n 3975GT from 1965 to 1968 owned by the Moinade family

Ferrari 250 GTE s/n 4077GT

Ferrari 250 GTE s/n 4079GT

Ferrari 250 GTE 2+2 s/n 3679GT

Ferrari 250 GTE s/n 4081GT

Ferrari 250 GTE s/n 4087GT

.. - rebodied '62 250 GTO style

Ferrari 250 GTE s/n 4089GT

Ferrari 250 GTE 2+2 s/n 4089GT
