Technical Specifications


Engine

Type

128F and 128E/63

Engine

Front longitudinal 60° V12,

light alloy cylinder block and head

Timing gear

2 valves per cylinder, single overhead camshaft per

cylinder bank

Bore and stroke

73 x 58.8 mm

Unitary and total displacement

246.10/2,953.21 cc

Compression ratio

8.8:1

Maximum power

240 bhp at 7,000 rpm

Fuel feed

3 twin choke Weber 40 DCL6 carbs

Ignition

single spark plug per cyclinder, 2 coils

Transmission

Dry, single-plate clutch,

4-speed gearbox + overdrive + reverse,

conventional differential


Chassis

Chassis type

508E

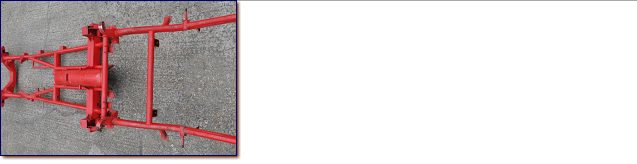

Chassis

Elliptical section steel tubes

Front suspension

Independent, unequal-length wishbones, coil springs

Rear suspension

Live axle, semi-elliptic leaf springs

Wheelbase, front and rear track

2,600 / 1,354 / 1,394 mm

Kerb weight

1,280 kg

Fuel tank

100 litres

Top Speed

230km/h


Total

302
 Previous page
 Next page
Up

Ferrari 250 GTE s/n 2779GT

.. - rebodied as TR (DK)
.. - engine installed 4553GT (250 GTE)


250 GTE 2+2 SI s/n 2379GT

Ferrari 250 GTE s/n 2801GT


Ferrari 250 GTE s/n 2781GT

Ferrari 250 GTE s/n 2783GT

Ferrari 250 GTE s/n 2785GT

Ferrari 250 GT PF cabriolet series II, s/n 2585GT

Ferrari 250 GTE s/n 2789GT

Ferrari 250 GT SWB Berlinetta s/n 2689GT

Ferrari 250 GTE s/n 2791GT

Ferrari 250 GTE s/n 2793GT

Ferrari 250 GTE with Drogo body s/n 2493

Ferrari 250 GTE s/n 2795GT

250 GTE 2+2 s/n 2795GT

Ferrari 250 GTE s/n 2797GT

Ferrari 250 GTE s/n 2799GT

Ferrari 250 GT PF Cabriolet S2 s/n 2099GT


Ferrari 250 GTE s/n 2803GT

.. - rebodied as 250 SWB

Ferrari 250 GTE s/n 2811GT

Ferrari 250 GTE s/n 2813GT

rebodied 250 GTO style

Ferrari 250 GTE s/n 2815GT

Ferrari 250 GTE s/n 2817GT

Ferrari 250 GTE s/n 2823GT

Ferrari 250 GT Drogo rebody, s/n 2423GT

Ferrari 250 GTE s/n 2825GT

Ferrari 250 GTE s/n 2827GT

Ferrari 250 GT PF Cabriolet, s/n 2327GT

Ferrari 250 GTE s/n 2829GT

91/nov - engine installed in 330 GT 2+2 5811GT

Ferrari 250 GT SWB Berlinetta s/n 2729GT

Ferrari 250 GTE s/n 2831GT

Ferrari 250 GTE s/n 2835GT

rebodied SWB style

250 GTE / SWB Berlinetta Competizione Replica s/n 2835GT

Ferrari 250 GTE s/n 2837GT

Ferrari 250 GT PF Cabriolet Series II s/n 2737GT

Ferrari 250 GTE s/n 2843GT

Ferrari 250 GT PF Berlinetta Prototype s/n 2643GT

Ferrari 250 GTE s/n 2847GT

Ferrari 250 GTE s/n 2849GT

.. - engine installed in 1485GT

Ferrari 250 GT SWB Berlinetta s/n 2649GT

Ferrari 250 GTE s/n 2851GT

.. - engine installed in 4835GT

Ferrari 250 GT SWB Berlinetta s/n 2551GT

Ferrari 250 GTE s/n 2853GT

IAA (Frankfurt) Show Car

1961 Ferrari 250 GTE s/n 2753GT

Ferrari 250 GTE s/n 2855GT

Ferrari 250 GTE s/n 2855GT

Ferrari 250 GTE s/n 2857GT

Ferrari 250 GTE s/n 2357GT

Ferrari 250 GTE s/n 2869GT

Ferrari 250 GT SWB Berlinetta, s/n 2669GT

Ferrari 250 GTE s/n 2873GT

Engine installed 2687GT

Ferrari 250 GTE s/n 2875GT

Paris Salon Automobile Show Car

Ferrari 250 GTE s/n 2877GT

Ferrari 250 GTE s/n 2881GT

Ferrari 250 GTE s/n 2883GT

.. - rebodied as GTO by Fossil Motorsports

Ferrari 250 GTE s/n 2885GT

Ferrari 250 GT PF cabriolet series II, s/n 2585GT

Ferrari 250 GTE s/n 2887GT

.. - rebodied as 250 cal spyder, alloy body from italy
.. - engine 8249GT (330 GT) installed

250 GT SWB Berlinetta s/n 2787GT

Ferrari 250 GTE s/n 2889GT

1. - engine temporarily used in 2383GT (250 GT SWB CAL. Spyder)
13 - engine re-united with car

Ferrari 250 GTE s/n 2895GT

99 - engine installed from another 250 GTE 2+2 but stamped "2895GT"

Ferrari 250 GTE s/n 2897GT

.. - 275 N.A.R.T. Spyder replica

Ferrari 250 GTE s/n 2899GT

Ferrari 250 GTE s/n 2901GT

rebodied GTO style

Ferrai 250 GTE 2+2 s/n 2901GT


Ferrari 250 GTE s/n 2905GT

Ferrari 250 GTE s/n 2907GT

Ferrari 250 GTE s/n 2911GT

Ferrari 250 GTE s/n 2913GT

Ferrari 250 GTE s/n 2913GT

Ferrari 250 GTE s/n 2915GT

250 GTE 2+2 SI s/n 2915GT

Ferrari 250 GTE s/n 2919GT

Ferrari 250 GTE s/n 2921GT

Ferrari 250 GT PF Coupe Speciale s/n 2821GT
