Technical Specifications


Engine

Type

128F and 128E/63

Engine

Front longitudinal 60° V12,

light alloy cylinder block and head

Timing gear

2 valves per cylinder, single overhead camshaft per

cylinder bank

Bore and stroke

73 x 58.8 mm

Unitary and total displacement

246.10/2,953.21 cc

Compression ratio

8.8:1

Maximum power

240 bhp at 7,000 rpm

Fuel feed

3 twin choke Weber 40 DCL6 carbs

Ignition

single spark plug per cyclinder, 2 coils

Transmission

Dry, single-plate clutch,

4-speed gearbox + overdrive + reverse,

conventional differential


Chassis

Chassis type

508E

Chassis

Elliptical section steel tubes

Front suspension

Independent, unequal-length wishbones, coil springs

Rear suspension

Live axle, semi-elliptic leaf springs

Wheelbase, front and rear track

2,600 / 1,354 / 1,394 mm

Kerb weight

1,280 kg

Fuel tank

100 litres

Top Speed

230km/h


Total

302
 Previous page
 Next page
Up

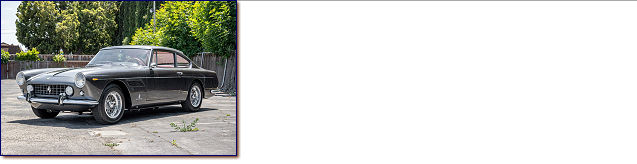

Ferrari 250 GTE s/n 2645GT

.. - TR replica

Ferrari 250 GTE s/n 2647GT

Ferrari 250 GTE s/n 2651GT

Ferrari 250 GT SWB Berlinetta s/n 2551GT

Ferrari 250 GTE s/n 2653GT

Ferrari 250 GTE s/n 2655GT

Ferrari 250 GT SWB s/n 2455GT

Ferrari 250 GTE s/n 2657GT

Ferrari 250 GTE s/n 2357GT

Ferrari 250 GTE s/n 2659GT

Ferrari 250 GT PF Cabriolet series II, s/n 2559GT

Ferrari 250 GTE s/n 2661GT

Ferrari 250 GTE s/n 2663GT

Ferrari 250 GTE s/n 2665GT

Ferrari 250 GTE s/n 2671GT

rebodied as SWB Berlinetta

Ferrari 250 GTE s/n 2673GT

rebodied as SWB Berlinetta and restamped 2439GT

Ferrari 250 GTE 2+2 SI s/n 2673GT .... rebodied SWB Berlinetta .... this is not 2439GT   ... it is just alook-a-like  with many differences ... see also  www.barchetta.cc/english/All.Ferraris/Detail/2673GT.250GTE.htm

Ferrari 250 GTE s/n 2675GT

Ferrari 250 GTE s/n 2677GT

S2 Prototype RHD

Ferrari 250 GTE s/n 2679GT

250 GTE 2+2 SI s/n 2379GT

Ferrari 250 GTE s/n 2681GT

Ferrari 250 GTE s/n 2685GT

Ferrari 250 GT PF cabriolet series II, s/n 2585GT

Ferrari 250 GTE s/n 2691GT

Ferrari 250 GTE s/n 2693GT

Ferrari 250 GTE with Drogo body s/n 2493

Ferrari 250 GTE s/n 2695GT

Ferrari 250 GT SWB s/n 2595 GT

Ferrari 250 GTE s/n 2697GT

Ferrari 250 GTE s/n 2705GT

Ferrari 250 GTE s/n 2707GT

Ferrari 250 GTE s/n 2709GT

Ferrari 250 GTE s/n 2711GT

Ferrari 250 GTE s/n 2713GT

.. - original engine ended up in a hydroplane
.. - engine from 3225GT installed


Ferrari 250 GTE 2+2 s/n 2713GT

Ferrari 250 GTE s/n 2715GT

Ferrari 250 GT PF Cabriolet SII s/n 2115GT

Ferrari 250 GTE s/n 2717GT

Ferrari 250 GT SWB Berlinetta s/n 2617GT

Ferrari 250 GTE s/n 2719GT

.. - rebuilt as 250 GTO Replica

Ferrari 250 GTE s/n 2721GT

.. - rebodied as 250 GT SWB Replica
.. - engine installed from 3515GT


Ferrari 250 GT SWB Berlinetta s/n 2521GT

Ferrari 250 GTE s/n 2723GT

Ferrari 250 GT Drogo rebody, s/n 2423GT

Ferrari 250 GTE s/n 2727GT

98 - engine in car stamped 2687GT

Ferrari 250 GT PF Cabriolet, s/n 2327GT

Ferrari 250 GTE s/n 2739GT

Ferrari 250 GTE s/n 2741GT

Ferrari 250 GTE s/n 2743GT

Ferrari 250 GT PF Berlinetta Prototype s/n 2643GT

Ferrari 250 GTE s/n 2745GT

rebodied as SWB Berlinetta

250 GT SWB replica, rebodied 250 GTE 2+2, s/n 3437GT

Ferrari 250 GTE s/n 2747GT

Ferrari 250 GTE s/n 2749GT

Ferrari 250 GT SWB Berlinetta s/n 2649GT

Ferrari 250 GTE s/n 2751GT

Ferrari 250 GT SWB Berlinetta s/n 2551GT

Ferrari 250 GTE s/n 2753GT

1961 Ferrari 250 GTE s/n 2753GT

Ferrari 250 GTE s/n 2755GT

Ferrari 250 GT SWB s/n 2455GT

Ferrari 250 GTE s/n 2757GT

rebodied as SWB Berlinetta

Ferrari 250 GTE s/n 2357GT

Ferrari 250 GTE s/n 2759GT

Ferrari 250 GT PF Cabriolet series II, s/n 2559GT

Ferrari 250 GTE s/n 2761GT

Ferrari 250 GTE s/n 2763GT

restamped 2439GT

Ferrari 250 GTE s/n 2769GT

Ferrari 250 GTE s/n 2771GT

Ferrari 250 GTE s/n 2773GT

Ferrari 250 GTE s/n 2775GT

Ferrari 250 GTE s/n 2777GT
