Technical Specifications



Engine

Type 208, front longitudinal. 60° V12,

light alloy cylinder block and head

Timing gear

2 valves per cylinder,

single overhead camshaft per cylinder bank

Bore and stroke

88 x 68 mm

Unitary and total displacement

413.46/4,963 cc

Compression ratio

8.8:1

Maximum power

400 bhp at 6,500 rpm; 80 bhp/litre

Transmission

Dry, single-plate clutch,

4-speed gearbox + overdrive and

reverse conventional differential (type 571)

Chassis

Tubular steel

Front suspension

Independent, double wishbones, coil springs, anti-roll bar

Rear suspension

Live axle, coil springs

Wheelbase, front and rear track

2,650/1,397/1,389 mm

Kerb weight

1,400 kg

Fuel tank

100 litres

Top speed

280 km/h



Total

24 + 12 = 36


1 330 SF Speciale with Superfast bodywork
 Previous page
 Next page
Up

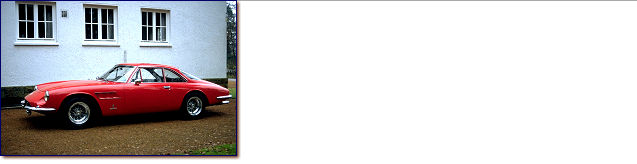

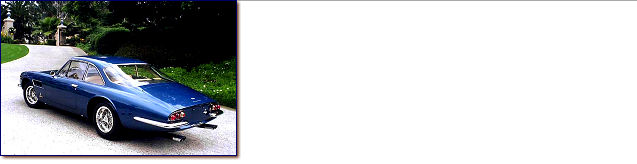

Ferrari 500 Superfast s/n 5951SF

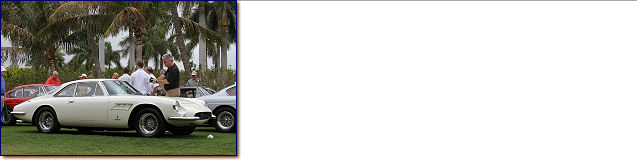

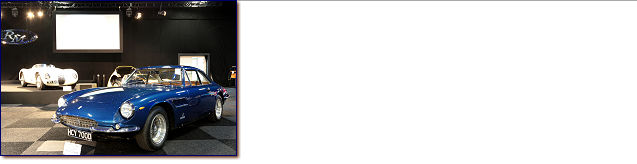

Ferrari 500 Superfast s/n 5977SF

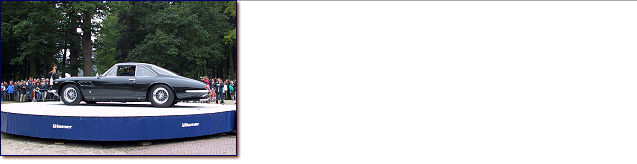

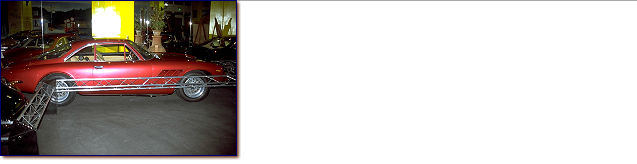

Ferrari 500 Superfast s/n 5977SF

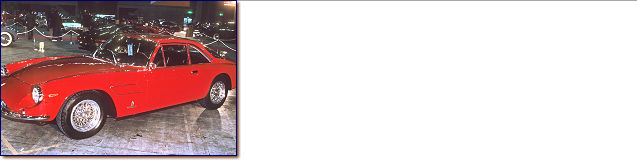

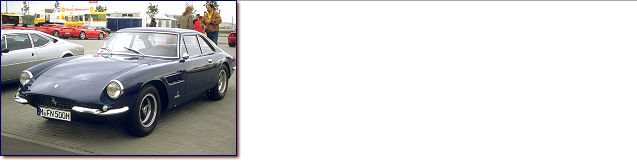

Ferrari 500 Superfast s/n 5979SF

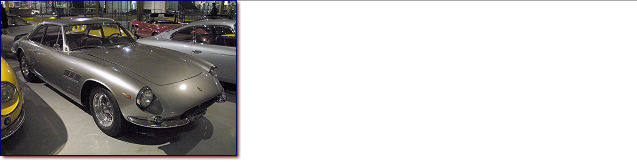

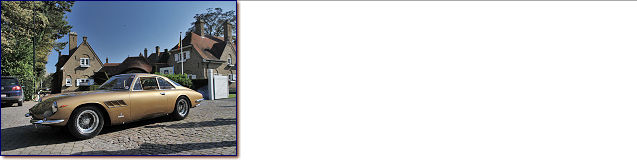

Ferrari 500 Superfast s/n 5981SF

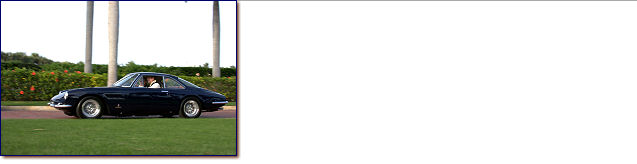

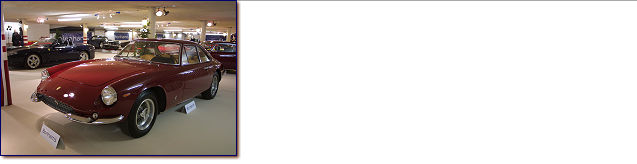

500 Superfast s/n 5981SA

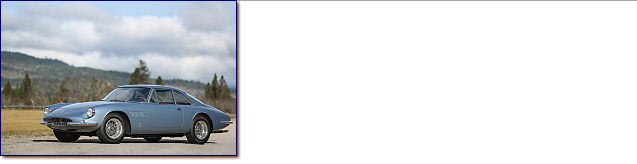

Ferrari 500 Superfast s/n 5983SF

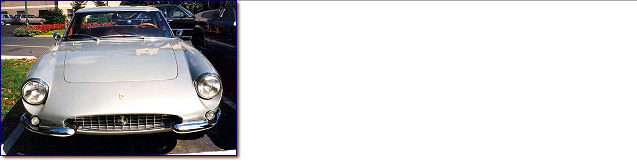

Ferrari 500 Superfast s/n 5983SF

Ferrari 500 Superfast s/n 5985SF

Ferrari 500 Superfast s/n 5989SF

Ferrari 500 Superfast s/n 6033SF

Ferrari 500 Superfast s/n 6039SF

500 Superfast Series I s/n 06039

Ferrari 500 Superfast s/n 6041SF

500 Superfast s/n 6041SF

Ferrari 500 Superfast s/n 6043SF

Ferrari 500 Superfast, s/n 6043SF

Ferrari 500 Superfast s/n 6049SF

90/nov - only engine for sale by Richard McEntyre, CA


Ferrari 500 Superfast s/n 6303SF

Ferrari 500 Superfast s/n 6305SF

Ferrari 500 Superfast s/n 6305SF

Ferrari 500 Superfast s/n 6307SF

Ferrari 500 Superfast s/n 6309SF

Ferrari 330 GT 2+2 Series I s/n 6209GT

Ferrari 500 Superfast 6345SF

destroyed

Ferrari 500 Superfast s/n 6351SF

Ferrari 500 Superfast s/n 6605SF

still stored in Tehran with broken windshield

Ferrari 500 Superfast s/n 6615SF

Ferrari 500 Superfast s/n 6659SF

Ferrari 500 Superfast s/n 6661SF

Ferrari 500 Superfast s/n 6673SF

500 Superfast s/n 6673SF

Ferrari 500 Superfast s/n 6679SF

Ferrari 500 Superfast s/n 7817SF

Ferrari 500 Superfast s/n 7817SF

Ferrari 500 Superfast s/n 7975SF

Ferrari 500 Superfast s/n 8019SF

500 Superfast s/n 8019SF

Ferrari 500 Superfast s/n 8083SF

Ferrari 500 Superfast s/n 8253SF

500 SF s/n 8253SF

Ferrari 500 Superfast s/n 8273SF

Ferrari 500 Superfast s/n 8299SF

Ferrari 500 Superfast s/n 8299SF "WQG 888" (FL, USA)

Ferrari 500 Superfast s/n 8459SF

Ferrari 500 Superfast s/n 8565SF

Ferrari 500 Superfast s/n 8565SF

Ferrari 500 Superfast s/n 8739SF

Ferrari 500 Superfast s/n 8817SF


Ferrari 500 Superfast s/n 8897SF

Ferrari 500 Superfast s/n 8897SF
