Technical Specifications |
Engine |
Engine |
Front longitudinal 60° V12, |
| light alloy cylinder block and head | |
Timing gear |
2 valves per cylinder, |
| single overhead camshaft per cylinder bank | |
Bore and stroke |
68 x 68 mm |
Unitary and total displacement |
246.95/2,963.45 cc |
Compression ratio |
8/8.5:1 |
Maximum power |
200 bhp at 6,300 rpm; 74 bhp/litre |
Transmission |
Multi-plate clutch, 4 speed-gearbox + reverse, |
| conventional differential |
Chassis |
Elliptical-section steel tubes |
Front suspension |
Independent, double wishbones, |
| transverse lower leaf spring | |
Rear suspension |
Live axle, longitudinal semi-elliptic leaf springs |
Wheelbase, front and rear track |
2,800/1,325/1,320 mm |
Kerb weight |
1,150 kg |
Fuel tank |
140 litres |
Top speed |
218 km/h |
|
Test Sheet |
|

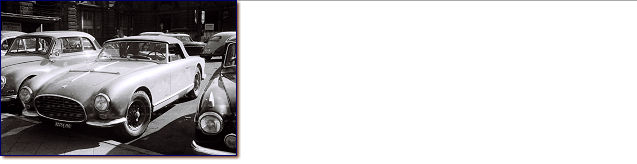

Vignale Cabriolet |
1 | 0353EU |
Vignale Coupe |
4 | 0295EU, 0313EU, 0347EU |
Pinin Farina Cabriolet |
1 | 0311EU |

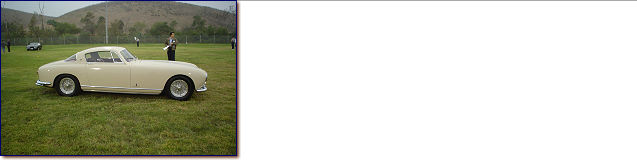

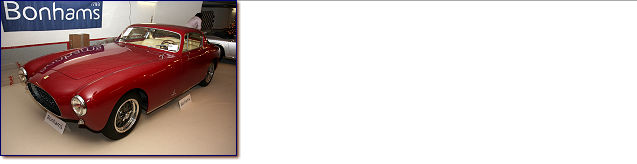

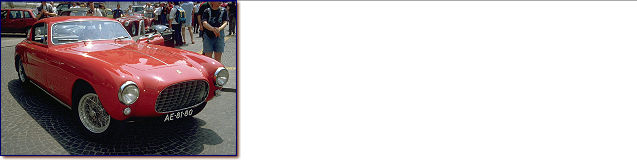

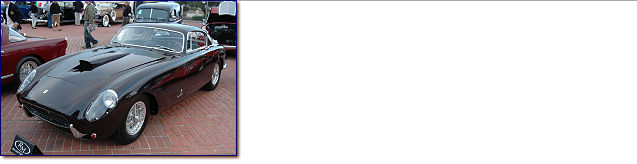

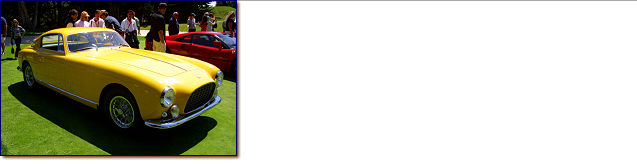

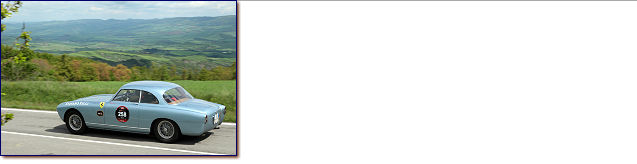

Pinin Farina Coupe |
17 | 0297EU, 0299EU, 0303EU, 0305EU, 0309EU, |
| 0315EU, 0321EU, 0323EU, 0325EU, 0331EU, | |
| 0333EU, 0335EU, 0341EU, 0343EU, 0345EU, | |
| 0349EU, 0351GT |
Total |
22 |
