Technical Specifications


Engine

Type

front, longitudinal 60° V12

Bore/stroke

77 x 58.8 mm

Unitary displacement

273.81 cc

Total displacement

3285.72 cc

Compression ratio

9.2 : 1

Maximum power

300 hp @ 8000 rpm

Valve actuation

twin overhead camshafts per bank,

two valves per cylinder

Fuel feed

six Weber 40 DCN 9 carburettors

Ignition

single spark plug per cylinder, two coils

Lubrication

dry sump

Clutch

single-plate

Top speed

268 km/h


Transmission

5-speed + reverse

Steering

worm and roller

Fuel tank

capacity 94 litres

Front tyres

205 x 14

Rear tyres

205 x 14


Chassis

Frame

tubular steel

Front suspension

independent,

unequal-length wishbones,

coil springs over telescopic shock absorbers,

anti-roll bar

Rear suspension

independent,

unequal-length wishbones,

coil springs over telescopic shock absorbers,

anti-roll bar

Brakes

discs

Wheelbase

2400 mm

Front track

1401 mm

Rear track

1417 mm

Weight

1100 kg (dry)


Wheels

Front

Borrani RW 3077

Rear

Borrani RW 3019



General

Type

two-seater, Berlinetta

Body Designer

Pininfarina

Body Builder

Scaglietti


Length cm
Overall
Width
Height

Curb Weight kg

1100 kg (dry)


Performance


Top speed

268 km/h



Total

330 + 1 = 331


 Previous page
 Next page
Up

Ferrari 275 GTB/4 s/n 10855

Ferrari 275 GTB/4 s/n 10861

Ferrari 275 GTB/4 s/n 10867

Ferrari 275 GTB/4 s/n 10869

Ferrari 275 GTB/4 s/n 10875

N.A.R.T. Spyder Conversion

Ferrari 275 GTB/4 NART Spyder Conversion s/n 10875

Ferrari 275 GTB/4 s/n 10881

Ferrari 275 GTB/4 s/n 10895

Ferrari 275 GTB/4 s/n 10299

Ferrari 275 GTB/4 s/n 10899

Ferrari 275 GTB/4 s/n 10905

Ferrari 275 GTB/4 s/n 10911

Ferrari 275 GTB/4 s/n 10917

Ferrari 275 GTB/4 s/n 10925

Ferrari 275 GTB/4 s/n 10931

Ferrari 275 GTB/4 s/n 10939

Ferrari 330 GTC s/n 10539

Ferrari 275 GTB/4 s/n 10943

Ferrari 275 GTB/4 s/n 10949

Ferrari 275 GTB/4 s/n 10953

275 GTB/4 s/n 10357

Ferrari 275 GTB/4 s/n 10965

Ferrari 275 GTB/4 s/n 10969

N.A.R.T. Spyder Conversion

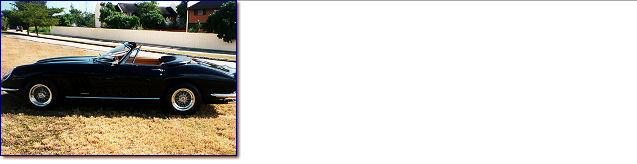

Ferrari 275 GTB/4 N.A.R.T. Spyder Conversion s/n 10969
