Technical Specifications


Engine

Type

front, longitudinal 60° V12

Bore/stroke

77 x 58.8 mm

Unitary displacement

273.81 cc

Total displacement

3285.72 cc

Compression ratio

9.2 : 1

Maximum power

300 hp @ 8000 rpm

Valve actuation

twin overhead camshafts per bank,

two valves per cylinder

Fuel feed

six Weber 40 DCN 9 carburettors

Ignition

single spark plug per cylinder, two coils

Lubrication

dry sump

Clutch

single-plate

Top speed

268 km/h


Transmission

5-speed + reverse

Steering

worm and roller

Fuel tank

capacity 94 litres

Front tyres

205 x 14

Rear tyres

205 x 14


Chassis

Frame

tubular steel

Front suspension

independent,

unequal-length wishbones,

coil springs over telescopic shock absorbers,

anti-roll bar

Rear suspension

independent,

unequal-length wishbones,

coil springs over telescopic shock absorbers,

anti-roll bar

Brakes

discs

Wheelbase

2400 mm

Front track

1401 mm

Rear track

1417 mm

Weight

1100 kg (dry)


Wheels

Front

Borrani RW 3077

Rear

Borrani RW 3019



General

Type

two-seater, Berlinetta

Body Designer

Pininfarina

Body Builder

Scaglietti


Length cm
Overall
Width
Height

Curb Weight kg

1100 kg (dry)


Performance


Top speed

268 km/h



Total

330 + 1 = 331


 Previous page
 Next page
Up

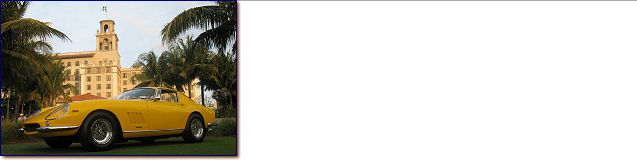

Ferrari 275 GTB/4 s/n 10589

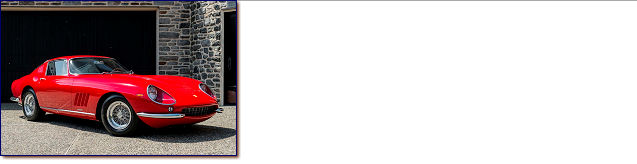

Ferrari 275 GTB/4 s/n 10589,

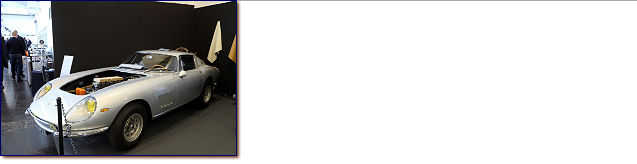

Ferrari 275 GTB/4 s/n 10595

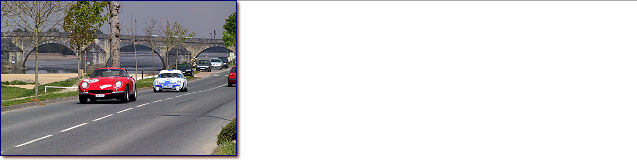

Ferrari 275 GTB/4 s/n 10299

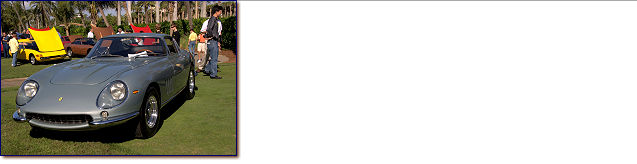

Ferrari 275 GTB/4 s/n 10597

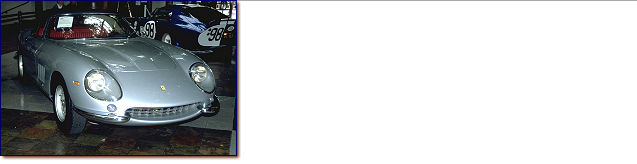

Ferrari 275 GTB/4 s/n 10299

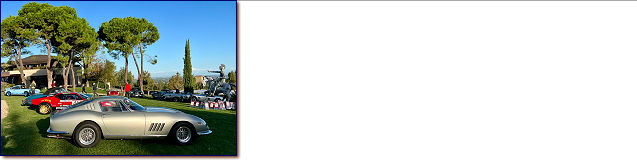

Ferrari 275 GTB/4 s/n 10601

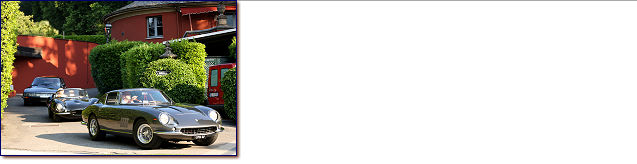

Ferrari 275 GTB/4, s/n 10201



Ferrari 275 GTB/4 s/n 10603

Ferrari 275 GTB/4 s/n 10607

Ferrari 275 GTB/4 s/n 10609

Ferrari 275 GTB/4 s/n 10613

Ferrari 275 GTB/4 s/n 10615

Ferrari 275 GTB/4 s/n 10619

Ferrari 275 GTB/4 s/n 10621

N.A.R.T. Spyder Conversion
converted to Berlinetta

Ferrari 275 GTB/4 s/n 10625

Ferrari 275 GTB/4, s/n 10525

Ferrari 275 GTB/4 s/n 10627

Ferrari 275 GTB/4 s/n 10627

Ferrari 275 GTB/4 s/n 10635

N.A.R.T. Spyder Conversion

Ferrari 275 GTB/4 s/n 10643

Ferrari 275 GTB/4 s/n 10649

Ferrari 275 GTB/4 s/n 10655

Ferrari 275 GTB/4 s/n 10663

Ferrari 275 GTB/4 s/n 10663

Ferrari 275 GTB/4 s/n 10669

Ferrari 330 GTC, s/n 10373

Ferrari 275 GTB/4 s/n 10675

Ferrari 275 GTB/4 s/n 10675

Ferrari 275 GTB/4 s/n 10681

Ferrari 275 GTB/4 s/n 10687

Ferrari 275 GTB/4 s/n 10697

Ferrari 275 GTB/4 s/n 10299

Ferrari 275 GTB/4 s/n 10701

Ferrari 275 GTB/4, s/n 10201


Ferrari 275 GTB/4 s/n 10707

275 GTB/4 s/n 10707

Ferrari 275 GTB/4 s/n 10711

Ferrari 275 GTB/4 s/n 10715

03/may/26 - S - Bonhams Monaco auction - PDS 288,504

Ferrari 275 GTB/4 s/n 10717

Ferrari 275 GTB/4 s/n 10723

Ferrari 275 GTB/4 s/n 10727

Ferrari 275 GTB/4 Spyder Conversion s/n 10527

Ferrari 275 GTB/4 s/n 10735

Ferrari 275 GTB/4 s/n 10743

N.A.R.T. Spyder Conversion

275 GTB/S4 Spider Conversion s/n 10743

Ferrari 275 GTB/4 s/n 10757

Ferrari 275 GTB/4 s/n 10765

Ferrari 275 GTB/4 s/n 10771

Ferrari 275 GTB/4 s/n 10777

Ferrari 275 GTB/4 s/n 10783

Ferrari 275 GTB/4 s/n 10785

275 GTB/4, s/n 10785


Ferrari 275 GTB/4 s/n 10803

Ferrari 275 GTB/4 s/n 10813

Ferrari 275 GTB/4 s/n 10815

Ferrari 275 GTB/4 s/n 10819

Ferrari 275 GTB/4 s/n 10821

Ferrari 275 GTB/4 s/n 10827

Ferrari 275 GTB/4 s/n 10829

Ferrari 275 GTB/4 s/n 10835

>>>>> '68 RHD

Ferrari 275 GTB/4 s/n 10843

275 GTB/S4 Spider Conversion s/n 10743

Ferrari 275 GTB/4 s/n 10847

N.A.R.T. Spyder Conversion

275 GTB/4 s/n 10451

Ferrari 275 GTB/4 s/n 10851
