Technical Specifications

Engine

Type Construction Number

500 TRC

Designer

Lampredi

Layout

4 Inline

Engine

Front longitudinal in-line 4-cylinders,

light alloy cylinder block and head

Timing gear

2 valves per cylinder,

twin overhead camshafts per cylinder bank

Drive Gears

Cam Followers Roller Tappet

Valve Design

Inclined

Valves Springs

Hairpin

No. of Spark Plugs/Cylinder

2

Ignition

2 Distributors

No. of Carburetors

2

Type of Carburetors

40 DCO/A3

Bore and stroke

73.0 x 58.8

Unitary and total displacement

496.21/1,984.85 cc

Compression ratio

8,75:1

Maximum power

180 bhp at 7,000 rpm


Drive Train


Clutch Double

dry twin-plate clutch

Transmission - No. of Gears

4-Speed & reverse

Transmission - Type

All synchro

Transmission - Location

With engine, , ZF limited-slip differential

Axle Ratio

3.77, 4.00, 4.25, 4.57:1


Chassis

Type

500 TRC

Chassis

Welded, elliptical section steel tubes

Tube Frame

Ladder Type

Front suspension

Independent, double wishbones,

coil springs or anti-roll bar

Rear suspension

Live axle, coil springs

Shocks

Houdaille

Brakes

Drum

Wheelbase, front and rear track

2,500/1,380/1,500 mm

Wheels


Front

Borrani

Rear

Borrani

Kerb weight

680 kg

Front tyres

5.50-16

Rear tyres

6.00-16

Fuel tank

120 litres


General

Body Designer

Scaglietti

Body Builder

Scaglietti

Lenght


Overall

  155.0

Width

  64.5

Height

  38.0



Total

19

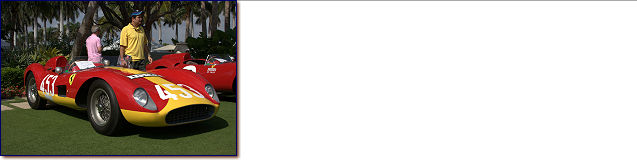

Ferrari 500 TRC Spider Scaglietti s/n 0658MDTR

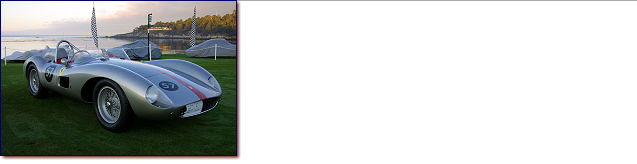

Ferrari 500 TRC Scaglietti Spyder s/n 0660MDTR

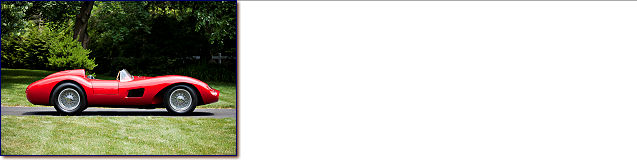

Ferrari 500 TRC Scaglietti Spyder s/n 0662MDTR

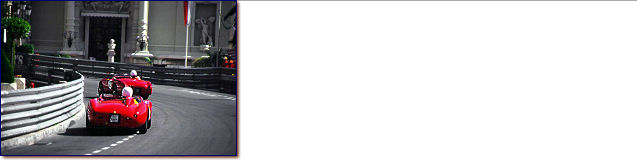

Ferrari 500 TRC Scaglietti Spyder s/n 0664MDTR

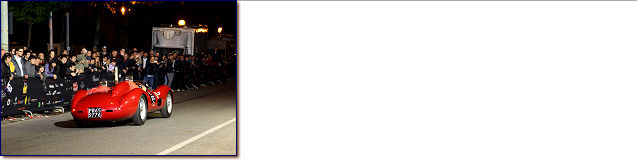

Ferrari 500 Mondial Scaglietti Spider s/n 0564/0424MD

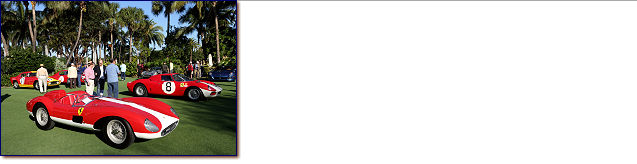

Ferrari 500 TRC Scaglietti Spyder s/n 0668MDTR

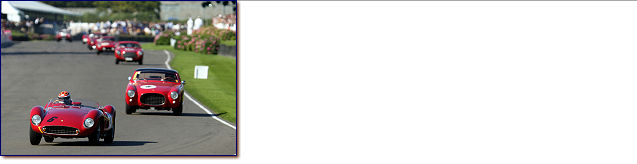

Ferrari 500 TRC Scaglietti Spyder s/n 0668MDTR

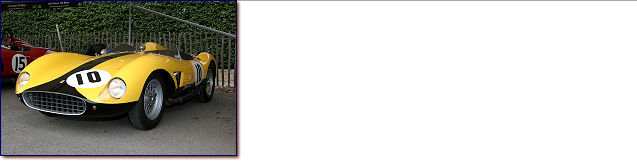

Ferrari 500 TRC Scaglietti Spyder s/n 0670MDTR

Ferrari 625 TRC Scaglietti Spyder s/n  0672MDTR


Ferrari 500 TRC Scaglietti Spyder s/n 0678MDTR

Ferrari 625 TRC Scaglietti Spyder s/n 0680MDTR

Ferrari 500 TRC Scaglietti Spyder s/n 0682MDTR

Ferrari 500 TRC Scaglietti Spider s/n 0686MDTR

Ferrari 500 TRC Scaglietti Spyder s/n 0690MDTR

Ferrari 500 TRC Scaglietti Spyder s/n 0692MDTR


Ferrari 500 TRC Spider Scaglietti, s/n 0692MDTR

Ferrari 500 TRC Scaglietti Spyder s/n 0694MDTR

destroyed

Ferrari 500 TRC Scaglietti Spyder s/n 0696MDTR


Ferrari 500 TRC Scaglietti Spyder s/n 0698MDTR


Ferrari 500 TRC Scaglietti Spyder s/n 0702MDTR

500 TRC Scaglietti Spyder s/n 0702MDTR

Ferrari 500 TRC Scaglietti Spyder s/n 0706MDTR

Ferrari 500 TRC Scaglietti Spider s/n 0708MDTR

Ferrari 500 TRC Scaglietti Spider s/n 0708MDTR
