Technical Specifications


Engine

Type -

Derived from the engine designed for the F50 road car

Construction Number

Type

V-12 65°

Bore x Stroke

Displacement

3997cc

Compression Ratio

Camshaft

4 overhead camshafts, driven by gears

No. of Valves

5

Injection

Weber Marelli digital electric fuel injection

Bhp @ rpm

600 Bhp @ 11000rpm Drive Train



Clutch

4 disk 5.5 inch diameter

Transmission - No. of Gears

5-Speed & reverse, sequential mechanical shift mechanism

Transmission - Location

transverse gearbox inside wheelbase

Chassis

Chassis

carbon fibre composite and aluminum honeycomb

Suspension

pushrod front and rear independent suspension

Wheelbase

2750 mm

 Track  Front 1660 mm

 Track  Rear 1572 mm

Brakes

Brembo disk brakes

Whells

 Front 10 x 17

 Rear 15 x 17

Tires

Goodyear or Pirelli  General


Length cm

Overall 4502 mm

 Width 1994 mm

 Height 1067 mm


Curb Weight kg

899



Total

40

(no 013 was not used)

Previous page
Next page
Up

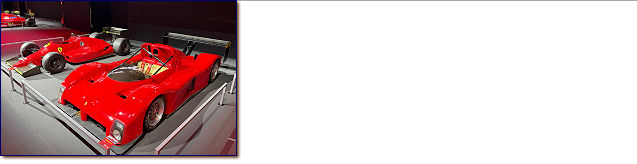

333 SP s/n 001

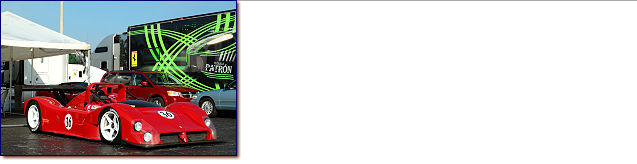

333 SP s/n 001, Christie’s International Motor Cars

333 SP s/n 002

333 SP s/n 003

95 - 1st - 12h Sebring
97 - 1st - 12h Sebring

Ferrari 333 SP s/n 003

333 SP s/n 004

accident re-tubed

333 SP s/n 004

333 SP s/n 005

Ferrari 333 SP s/n 005

333 SP s/n 006

333 SP s/n 006


333 SP s/n 007

Ferrari 365 California s/n 9849

333 SP s/n 008

Ferrari 365 California s/n 9889

333 SP s/n 009

F333 SP s/n 010 Evoluzione

Ferrari 333 SP s/n 010

F333 SP s/n 011 Evoluzione

F333 SP s/n 012 Evoluzione

333 SP #012b

F333 SP s/n 014 Evoluzione

Ferrari 333 SP s/n 014

F333 SP s/n 015

F333 SP s/n 017 Michelotto



Doyle-Risi Team
1997

Good luck for the 333 SP s/n 017 of Max Anglelli, Didier de Radigues and Anthony Lazzaro

F333 SP s/n 018  Michelotto



Doyle-Risi Team
1997

The 333 SP s/n 018 of Wayne Taylor, Alex Caffi and Juan Manuel Fangio II was the best Ferrari at Sebring and finished 6th

F333 SP s/n 016 Michelotto


Lienhard Racing
1997

Ferrari F333 SP s/n 016

F333 SP s/n 019 Michelotto



MOMO

1998

 1st 24h Daytona

 1st 12h Sebring


F333 SP s/n 019

F333 SP s/n 021 Michelotto



Bellm/GTC
1998

333 SP s/n 021

F333 SP s/n 020 Michelotto



Calderari
1998

Ferrari 333 SP s/n 020, Autosport Racing, Enzo Calderari and Lilian Bryner

F333 SP s/n 028 Michelotto



1999

F333 SP s/n 028

F333 SP s/n 022 Michelotto



Jabouille

1998

 1998 - ISRS Champion


Ferrari 333 SP s/n 022

F333 SP s/n 023 Michelotto



Noel-Del Belo Racing

1998


333 SP s/n 023

F333 SP s/n 024 Michelotto



Scuderia Italia
1998

333SP s/n 024

F333 SP s/n 025 Michelotto



Lista Ferrari

1999

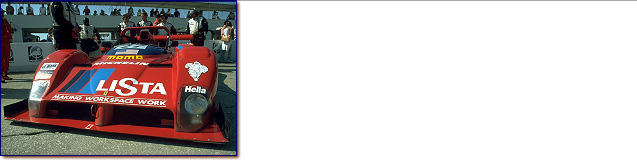

333 SP s/n 025 of Didier Theys, Mauro Baldi and Fredy Lienhard

F333 SP s/n 026 Michelotto



JMR

1999
Sparkling under Max Papis' Doran/Matthews Racing "JMR" 333 SP

F333 SP s/n 027 Michelotto



1999

F333 SP s/n 027 in the Loews Corner

F333 SP s/n 035 Michelotto



1999/2000

F333 SP s/n 029 Michelotto

Scuderia Italia
1999

Ferrari 333 SP s/n 029, BMS Scuderia Italia, Angelo and Marco Zadra

F333 SP s/n 030 Michelotto



Jabouille
1999

The 333 SP s/n 030 on the starting grid

F333 SP s/n 031 Michelotto



1999

Kelemata Italtechnica 333 SP s/n 031, Giraudi/Tedeschi

F333 SP s/n 032 Michelotto



1999

Ferrari 333 SP s/n 032

F333 SP s/n 033 Michelotto



1999

F333 SP s/n 033

F333 SP s/n 034 Michelotto



1999

Ferrari 333 SP s/n 034

F333 SP s/n 037 Michelotto



1999/2000

F333 SP s/n 036 Michelotto



1999/2000

F333 SP s/n 041 Michelotto



1999/2000

F333 SP s/n 038 Michelotto



1999/2000

Ferrari 333 SP s/n 038

F333 SP s/n 039 Michelotto



1999/2000

F333 SP s/n 040 Michelotto



1999/2000

Ferrari 333 SP s/n 040
