Technical Specifications


Engine

Type

front, longitudinal 60° V12

Bore/stroke

81 x 71 mm

Unitary displacement

365.86 cc

Total displacement

4390.35 cc

Compression ratio

8.8 : 1

Maximum power

235 kW (320 hp) at 6600 rpm

Power per litre

73 hp/l

Valve actuation

single overhead camshaft per bank,

two valves per cylinder

Fuel feed

three Weber 40 DFI/5 carburettors

Ignition

single spark plug per cylinder, two coils

Lubrication

wet sump

Clutch

single-plate


Chassis

Frame

tubular steel

Front suspension

independent, unequal-length wishbones,

coil springs over telescopic shock absorbers, anti-roll bar

Rear suspension

independent, unequal-length wishbones,

coil springs over telescopic shock absorbers, anti-roll bar

Brakes

discs

Transmission

5-speed + reverse

Steering

worm and roller

Fuel tank

capacity 90 litres

Front tyres

205 x 14

Rear tyres

205 x 14


Bodywork


Type

two-seater coupé

Length

4430 mm

Width

1675 mm

Height

1250 mm

Wheelbase

2400 mm

Front track

1401 mm

Rear track

1417 mm

Weight

1200 kg (dry)


Performance


Top speed

250 km/h



Total

20
 Previous page
 Next page
Up

Ferrari 365 GTS s/n 11227

Ferrari 365 GTS s/n 12163

1969

365 GTS s/n 12163 with rare hardtop (originally painted black)

Ferrari 365 GTS s/n 12201

Ferrari 365 GTS s/n 12201


Ferrari 365 GTS s/n 12225

Ferrari 365 GT 2+2, s/n 11915

Ferrari 365 GTS s/n 12243

Ferrari 365 GTS s/n 12253

Ferrari 365 GTS s/n 12259

Ferrari 365 GTS s/n 12269

Ferrari 365 GTS s/n 12285

Ferrari 365 GTS s/n 12307

Ferrari 365 GTS s/n 12307 & Jody Scheckter

Ferrari 365 GTS s/n 12453

Ferrari 365 GTS s/n 12455

Ferrari 365 GTS s/n 12457

Ferrari 275 GTB/4S N.A.R.T. Spyder s/n 11057

Ferrari 365 GTS s/n 12459

365 GTC s/n 12359

Ferrari 365 GTS s/n 12463

365 GTS s/n 12163 with rare hardtop (originally painted black)

Ferrari 365 GTS s/n 12465

Ferrari 365 GTS s/n 12473

365 GTS, s/n 12473

Ferrari 365 GTS s/n 12477

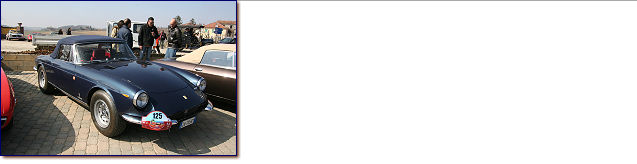

125 5°  Capelletti Claudio Tragni Giuseppina FERRARI 365 GTS s/n 12477 1969 I

Ferrari 365 GTS s/n 12489

Ferrari 365 GTS s/n 12489

Ferrari 365 GTS s/n 12493
