Technical Specifications


Engine

Type

front, longitudinal 60° V12

Bore/stroke

77 x 71 mm

Unitary displacement

330.62 cc

Total displacement

3967.44 cc

Compression ratio

8.8 : 1

Maximum power

221 kW (300 hp) at 7000 rpm

Power per litre

76 hp/l

Valve actuation

single overhead camshaft per bank,

two valves per cylinder

Fuel feed

three Weber 40 DCZ/6 carburettors

Ignition

single spark plug per cylinder, two coils

Lubrication

wet sump

Clutch

single-plate


Chassis

Frame

tubular steel

Front suspension

independent, unequal-length wishbones,

coil springs over telescopic shock absorbers, anti-roll bar

Rear suspension

independent, unequal-length wishbones,

coil springs over telescopic shock absorbers, anti-roll bar

Brakes

discs

Transmission

5-speed + reverse

Steering

worm and roller

Fuel tank

capacity 90 litres

Front tyres

205 x 14

Rear tyres

205 x 14


Bodywork


Type

two-seater coupé

Length

4470 mm

Width

1665 mm

Height

1282 mm

Wheelbase

2400 mm

Front track

1401 mm

Rear track

1417 mm

Weight

1300 kg (dry)


Performance


Top speed

242 km/h



Total

600


 Previous page
 Next page
Up

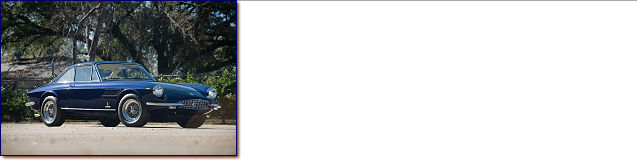

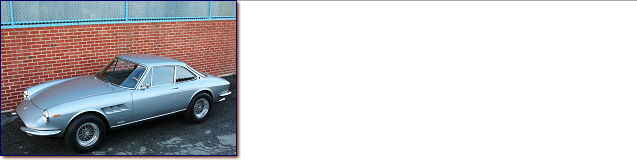

Ferrari 330 GTC s/n 09819

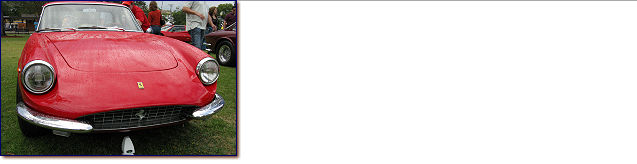

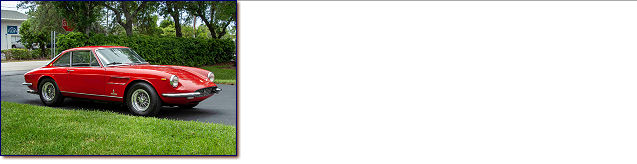

Ferrari 330 GTC s/n 09821

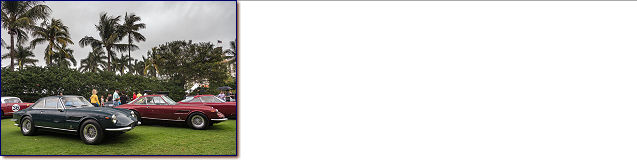

Ferrari 330 GTC s/n 09829

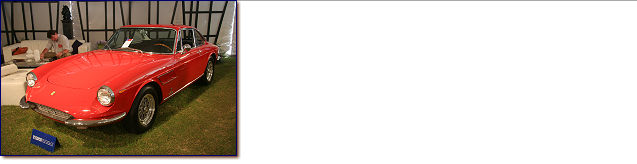

Ferrari 330 GTC s/n 09833

Ferrari 275 GTB/4 s/n 09233

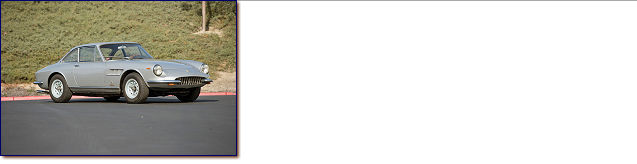

Ferrari 330 GTC s/n 09837

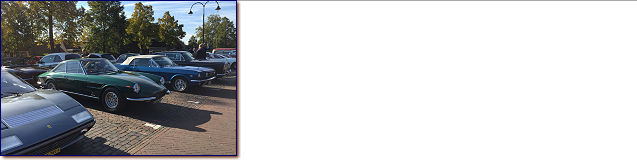

Ferrari 330 GTC s/n 09839

Ferrari 330 GTC s/n 09839

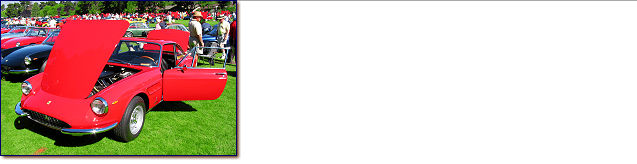

Ferrari 330 GTC s/n 09843

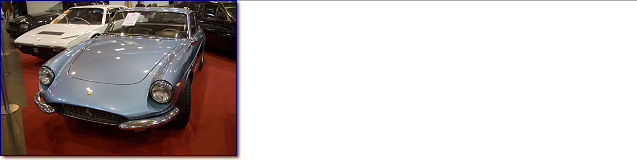

Ferrari 330 GTC s/n 09845
