Technical Specifications


Engine

Type

front, longitudinal 60° V12

Bore/stroke

77 x 71 mm

Unitary displacement

330.62 cc

Total displacement

3967.44 cc

Compression ratio

8.8 : 1

Maximum power

221 kW (300 hp) at 7000 rpm

Power per litre

76 hp/l

Valve actuation

single overhead camshaft per bank,

two valves per cylinder

Fuel feed

three Weber 40 DCZ/6 carburettors

Ignition

single spark plug per cylinder, two coils

Lubrication

wet sump

Clutch

single-plate


Chassis

Frame

tubular steel

Front suspension

independent, unequal-length wishbones,

coil springs over telescopic shock absorbers, anti-roll bar

Rear suspension

independent, unequal-length wishbones,

coil springs over telescopic shock absorbers, anti-roll bar

Brakes

discs

Transmission

5-speed + reverse

Steering

worm and roller

Fuel tank

capacity 90 litres

Front tyres

205 x 14

Rear tyres

205 x 14


Bodywork


Type

two-seater coupé

Length

4470 mm

Width

1665 mm

Height

1282 mm

Wheelbase

2400 mm

Front track

1401 mm

Rear track

1417 mm

Weight

1300 kg (dry)


Performance


Top speed

242 km/h



Total

600


 Previous page
 Next page
Up

Ferrari 330 GTC s/n 09025

Ferrari 330 GT 2+2 S2 s/n 8925GT

Ferrari 330 GTC s/n 09031

Ferrari 330 GT s/n 8731GT

Ferrari 330 GTC s/n 09037

Ferrari 330 GTC, s/n 9037

Ferrari 330 GTC s/n 09039

Ferrari 330 GTC s/n 09045

Ferrari 330 GTC s/n 09049

Ferrari 275 GTB/6C alloy s/n 08749

Ferrari 330 GTC s/n 09055

250 GT Lusso & 275 GTB longnose, s/n 5853GT & 08955

Ferrari 330 GTC s/n 09061

Ferrari 330 GTC s/n 09069

Ferrari 330 GTC s/n 09075

Ferrari 330 GTC s/n 09077

Ferrari 330 GTC s/n 09081

Ferrari 330 GTC s/n 09091

Ferrari 330 GTC s/n 09093

Ferrari 330 GTC s/n 09099


Ferrari 330 GTC s/n 09103

Ferrari 330 GTC s/n 09107

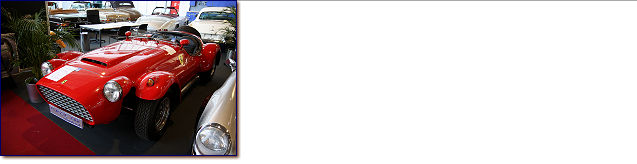

Felber Beach Car
