Technical Specifications


Engine

Front longitudinal 60° V12,

light alloy cylinder block and head

Timing gear

2 valves per cylinder,

single overhead camshaft per cylinder bank

Bore and stroke

77 x 71 mm

Unitary and total displacement

330.62/3,967.44 cc

Compression ratio

8.8:1

Maximum power

300 bhp at 6,600 rpm

Fuel feed

3 Weber 40 DCZ 6 carbs

Ignition

single spark plug per cyclinder, 2 coils

Transmission

Dry, single-plate clutch,

4-speed gearbox + overdrive + reverse,

conventional differential

Chassis

Elliptical section steel tubes

Front suspension

Independent, unequal-length wishbones, coil springs

Rear suspension

Live axle, semi-elliptic leaf springs

Wheelbase, front and rear track

2,650 / 1,397 / 1,389 mm

Kerb weight

1,380 kg

Fuel tank

90 litres

Top Speed

245km/h


Total

500 + 2 (prototype 1 & 2)
 Previous page
 Next page
Up

Ferrari 330 GT 2+2 s/n 6523GT

Ferrari 330 GT 2+2 s/n 6525GT

Ferrari 250 LM PF Coupe Speciale s/n 6025

Ferrari 330 GT 2+2 s/n 6531GT

Ferrari 330 GT 2+2 s/n 6533GT

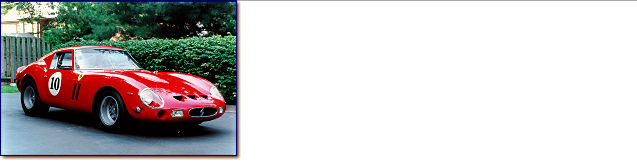

rebodied GTO style
body only auctioned
engine in 250 TR replica

Ferrari 330 GT 2+2 s/n 6533GT - Lot 124  Sold $16500

Ferrari 330 GT 2+2 s/n 6535GT

Ferrari 330 GT 2+2 s/n 6537GT

Ferrari 330 GT 2+2 s/n 6539GT

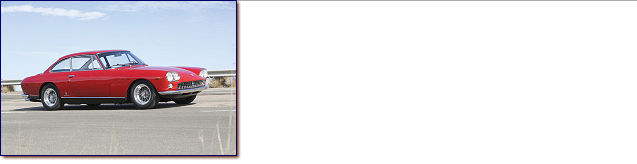

1964 Ferrari 330 GT 2+2 s/n 6539GT

Ferrari 330 GT 2+2 s/n 6541GT

Ferrari 330 GT 2+2 s/n 6545GT

Ferrari 330 GT 2+2 s/n 6547GT

Ferrari 250 GT Lusso s/n 5947

Ferrari 330 GT 2+2 s/n 6549GT

Ferrari 330 GT 2+2 s/n 6551GT

Ferrari 330 GT 2+2 s/n 6553GT

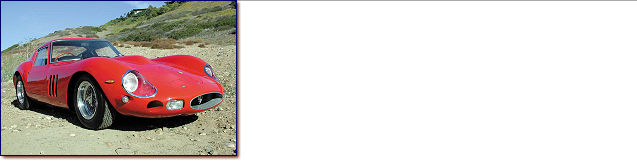

rebodied '62 GTO style

Ferrari 250 GT/L, s/n 5953GT

Ferrari 330 GT 2+2 s/n 6555GT

rebodied California Spyder style

Ferrari 330 GT 2+2 s/n 6559GT

parted out

Ferrari 330 GT 2+2 s/n 6561GT

Ferrari 330 GT 2+2 s/n 6565GT

Ferrari 330 GT 2+2 s/n 6567GT

parted out

Ferrari 330 GT 2+2 s/n 6571GT

parted out ... engine separated from car

Ferrari 330 GT 2+2 series I, s/n 6271

Ferrari 330 GT 2+2 s/n 6573GT

Ferrari 330 GT 2+2 s/n 6573GT

Ferrari 330 GT 2+2 s/n 6579GT

Ferrari 330 GT 2+2 S1 s/n 6479GT

Ferrari 330 GT 2+2 s/n 6581GT

Ferrari 330 GT 2+2 s/n 6583GT

Ferrari 330 GT 2+2 s/n 6483GT - Giuseppe Giaconia di Migaido

Ferrari 330 GT 2+2 s/n 6591GT

Ferrari 330 GTO Replica s/n 6291GT

Ferrari 330 GT 2+2 s/n 6593GT

Ferrari 330 GT 2+2 Series I #6393GT

Ferrari 330 GT 2+2 s/n 6595GT

Ferrari 330 GT 2+2 s/n 6597GT

Ferrari 330 GT 2+2 s/n 6607GT

engine separated from car

Ferrari 275 GTB, s/n 06507, Philippe Lancksweert (B)

Ferrari 330 GT 2+2 s/n 6613GT

250 GTE "Drogo" Conversion red/red s/n 3213GT/3881

Ferrari 330 GT 2+2 s/n 6623GT

Ferrari 330 GT 2+2 s/n 6625GT

engine separated from car

Ferrari 330 GT 2+2 s/n 6625GT

Ferrari 330 GT 2+2 s/n 6627GT

parted out

Ferrari 275 GTB s/n 6527

Ferrari 330 GT 2+2 s/n 6633GT

Ferrari 330 GT 2+2 s/n 6533GT - Lot 124  Sold $16500

Ferrari 330 GT 2+2 s/n 6635GT

converted to 2 headlight configuartion

Ferrari 330 GT 2+2 s/n 6637GT

Ferrari 330 GT 2+2 s/n 6641GT

engine separated from car

Ferrari 330 GT 2+2 s/n 6647GT

Ferrari 250 GT Lusso s/n 5947

Ferrari 330 GT 2+2 s/n 6649GT

engine separated from car

Ferrari 330 GT 2+2 s/n 6657GT

Ferrari 330 GT 2+2 s/n 6667GT

Ferrari 330 GT 2+2 s/n 6675GT

engine separated from car ... roller

330 GT 2+2 Ser. I (no engine+gearbox) blue s/n 6675 - Lot 137

Ferrari 330 GT 2+2 s/n 6685GT

Ferrari 330 GT 2+2 s/n 6687GT

Ferrari 330 GT 2+2 s/n 6689GT

rebodied '62 GTO style

330 GT s/n 6689GT rebodied GTO Style

Ferrari 330 GT 2+2 s/n 6697GT

Ferrari 330 GT 2+2 s/n 6699GT

Ferrari 330 GT 2+2 s/n 6713GT

engine in 330 GTO replica 5273GT

250 GTE "Drogo" Conversion red/red s/n 3213GT/3881

Ferrari 330 GT 2+2 s/n 6727GT

rebodied '62 GTO style

Ferrari 275 GTB s/n 6527

Ferrari 330 GT 2+2 s/n 6729GT

parted out

250 GT/L, s/n 5729GT

Ferrari 330 GT 2+2 s/n 6735GT
