Technical Specifications



Engine

Front longitudinal 60° V12,

light alloy cylinder block and head

Timing gear

2 valves per cylinder,

single overhead camshaft per cylinder bank

Bore and stroke

77 x 71 mm

Unitary and total displacement

330.62/3,967.44 cc

Compression ratio

8.8:1

Maximum power

300 bhp at 6,600 rpm

Fuel feed

3 Weber 40 DCZ 6 carbs

Ignition

single spark plug per cyclinder, 2 coils

Transmission

Dry, single-plate clutch,

4-speed gearbox + overdrive + reverse,

conventional differential


Chassis

Elliptical section steel tubes

Front suspension

Independent, unequal-length wishbones, coil springs

Rear suspension

Live axle, semi-elliptic leaf springs

Wheelbase, front and rear track

2,650 / 1,397 / 1,389 mm

Kerb weight

1,380 kg

Fuel tank

90 litres

Top Speed

245km/h


Total

50
 Previous page
 Next page
Up

Ferrari 330 America s/n 4953GT

Ferrari 330 LMB s/n 4453SA

Ferrari 330 America s/n 4969GT

Ferrari 330 America s/n 4973GT

Ferrari 330 America s/n 4975GT

Ferrari 250 GTE 2+2, s/n 4775GT

Ferrari 330 America s/n 4981GT

Ferrari 330 America s/n 4983GT

Ferrari 250 GT/Ls/n 4383GT

Ferrari 330 America s/n 4987GT

Ferrari 330 America s/n 4989GT

Ferrari 330 America s/n 4991GT

Ferrari 250 GT Lusso s/n 4891GT

Ferrari 330 America s/n 4993GT

Ferrari 330 America s/n 4995GT

Ferrari Ferrari 330 America s/n 4997GT

(330 GT prototype)

Ferrari 330 America s/n 4999GT

95 - parted out

Ferrari 330 America s/n 5005GT

converted to 250 TR/59

330 America s/n 5005GT converted to 250 TR/59 replica

Ferrari 330 America s/n 5007GT

Ferrari 330 America s/n 5009GT

Ferrari 330 America s/n 5011GT

250 GT Lusso s/n 4411GT

Ferrari 330 America s/n 5013GT

250 GTE "Drogo" Conversion red/red s/n 3213GT/3881

Ferrari 330 America s/n 5015GT

Ferrari 330 America s/n 5019GT

Ferrari 330 America s/n 5023GT

Ferrari 330 America s/n 5023GT

Ferrari 330 America s/n 5025GT

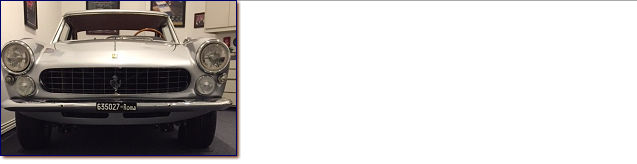

Ferrari 330 America s/n 5027GT

Ferrari 250 GT Lusso s/n 4627

Ferrari 330 America s/n 5033GT

wrecked in road accident due hitting a tree
Parted out, engine in 250 GTE s/n 4799GT

Ferrari 330 America s/n 5035GT

Ferrari 330 America s/n 5035

Ferrari 330 America s/n 5037GT

Ferrari 330 America s/n 5039GT

Ferrari 250 GTE 2+2 SII s/n 4839GT

Ferrari 330 America s/n 5041GT

Ferrari 400 SA LWB S.2 Cabriolet s/n 4241SA

Ferrari 330 America s/n 5047GT

.. - parted out

Ferrari 330 America s/n 5049GT

Ferrari 330 America 2+2 s/n 5049GT

Ferrari 330 America s/n 5051GT

Ferrari 330 America s/n 5053GT

Ferrari 330 America s/n 5055GT

Sandra West, San Antonio, TX, USA
1977 buried in this car

Ferrari 250 GT/L, s/n 4955GT

Ferrari 330 America s/n 5059GT

8. - rebodied as 330 GTO

Ferrari 330 America s/n 5061GT

330 America s/n 5061GT

Ferrari 330 America s/n 5065GT

Ferrari 250 GT/L, s/n 4965GT

Ferrari 330 America s/n 5069GT

330 America s/n 5069GT

Ferrari 330 America s/n 5071GT

Ferrari 250 GT/L, s/n 4471GT

Ferrari 330 America s/n 5075GT

Ferrari 250 GTE 2+2, s/n 4775GT

Ferrari 330 America s/n 5077GT

250 GT Lusso s/n 4577GT

Ferrari 330 America s/n 5079GT

77/aug - parted out

Ferrari 250 GT/L, s/n 4979GT

Ferrari 330 America s/n 5083GT

04/ - ... - engine and transmission from 6473GT installed

Ferrari 250 GT/Ls/n 4383GT


Ferrari 330 America s/n 5103GT

330 America s/n 5103GT

Ferrari 330 America s/n 5105GT

330 America s/n 5005GT converted to 250 TR/59 replica

Ferrari 330 America s/n 5107GT

Ferrari 330 America s/n 5109GT

Ferrari 330 America s/n 5113GT

250 GTE "Drogo" Conversion red/red s/n 3213GT/3881

Ferrari 330 America s/n 5121GT

Ferrari 330 America s/n 5121GT

Ferrari 330 America s/n 5125GT

.. - parted out, engine in 330 GT
