Technical Specifications


Engine

Type

128F and 128E/63

Engine

Front longitudinal 60° V12,

light alloy cylinder block and head

Timing gear

2 valves per cylinder, single overhead camshaft per

cylinder bank

Bore and stroke

73 x 58.8 mm

Unitary and total displacement

246.10/2,953.21 cc

Compression ratio

8.8:1

Maximum power

240 bhp at 7,000 rpm

Fuel feed

3 twin choke Weber 40 DCL6 carbs

Ignition

single spark plug per cyclinder, 2 coils

Transmission

Dry, single-plate clutch,

4-speed gearbox + overdrive + reverse,

conventional differential


Chassis

Chassis type

508E

Chassis

Elliptical section steel tubes

Front suspension

Independent, unequal-length wishbones, coil springs

Rear suspension

Live axle, semi-elliptic leaf springs

Wheelbase, front and rear track

2,600 / 1,354 / 1,394 mm

Kerb weight

1,280 kg

Fuel tank

100 litres

Top Speed

230km/h


Total

302
 Previous page
 Next page
Up

Ferrari 250 GTE s/n 4839GT

Ferrari 250 GTE 2+2 SII s/n 4839GT

Ferrari 250 GTE s/n 4841GT

Ferrari 400 SA LWB S.2 Cabriolet s/n 4241SA

Ferrari 250 GTE s/n 4843GT

Ferrari 250 GTE s/n 4847GT

Ferrari 250 GTE s/n 4853GT

Ferrari 330 LMB s/n 4453SA

Ferrari 250 GTE s/n 4855GT

Ferrari 250 GTE s/n 4857GT

Ferrari 250 GTE s/n 4859GT

Ferrari 250 GTE s/n 4861GT

.. - rebodied as GTO

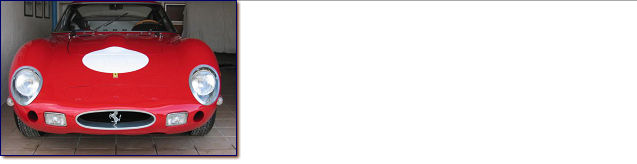

250 GTE s/n 4861GT rebodied as 250 GTO

Ferrari 250 GTE s/n 4865GT

Ferrari 250 250 GTE SIII s/n 4865GT

Ferrari 250 GTE s/n 4869GT

Ferrari 250 GTE s/n 4871GT

Ferrari 250 GT/L, s/n 4471GT

Ferrari 250 GTE s/n 4873GT

.. - rebodied 500 TRC style

Ferrari 250 GTE s/n 4875GT

Ferrari 250 GTE 2+2, s/n 4775GT

Ferrari 250 GTE s/n 4879GT

400 Superamerica s/n 4679

Ferrari 250 GTE s/n 4881GT

Ferrari 250 GTE s/n 4883GT

Ferrari 250 GT/Ls/n 4383GT

Ferrari 250 GTE s/n 4885GT

Ferrari 250 GTE s/n 4887GT

Ferrari 250 GTE s/n 4889GT

12/... - engine from 5835GT (330 GT 2+2) installed

Ferrari 250 GTE s/n 4893GT

Ferrari 250 GTE s/n 4895GT

Ferrari 250 GTE s/n 4897GT

Ferrari 250 GTE s/n 4899GT

Ferrari 250 GTE s/n 4901GT

250 GTE 2+2 SII s/n 4101GT


Ferrari 250 GTE s/n 4905GT

250 GTE s/n 4905GT

Ferrari 250 GTE s/n 4907GT

Ferrari 250 GTE 2+2, s/n 4507GT

Ferrari 250 GTE s/n 4909GT

250 GT Lusso s/n 4509GT

Ferrari 250 GTE s/n 4911GT

250 GT Lusso s/n 4411GT

Ferrari 250 GTE s/n 4913GT

250 GTE "Drogo" Conversion red/red s/n 3213GT/3881

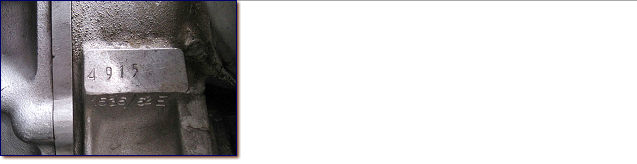

Ferrari 250 GTE s/n 4915GT

engine installed in 13123

Ferrari 250 GTE s/n 4917GT

Ferrari 250 GTE s/n 4919GT

Ferrari 250 GT/L s/n 4519GT

Ferrari 250 GTE s/n 4921GT

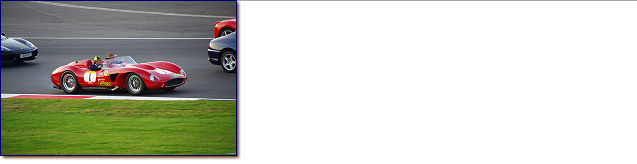

.. - rebodied as TR
.. - engine installed in 2209GT

Ferrari 250 GTE s/n 4923GT

Ferrari 250 GTE 2+2 s/n 4823GT

Ferrari 250 GTE s/n 4925GT

Ferrari 250 GTE s/n 4927GT

Ferrari 250 GT Lusso s/n 4627

Ferrari 250 GTE s/n 4929GT

Ferrari 250 GTE 2+2 series III, s/n 4729GT

Ferrari 250 GTE s/n 4931GT

Ferrari 250 GTE s/n 4933GT

8./mid - rebodied as California Spyder

Ferrari 250 GTE s/n 4937GT

Ferrari 250 GT Lusso s/n 4837GT

Ferrari 250 GTE s/n 4939GT

Ferrari 250 GTE 2+2 SII s/n 4839GT

Ferrari 250 GTE s/n 4941GT

Ferrari 400 SA LWB S.2 Cabriolet s/n 4241SA

Ferrari 250 GTE s/n 4943GT

Ferrari 250 GTE s/n 4947GT

Ferrari 250 GTE s/n 4949GT

Ferrari 250 GTE s/n 4951GT

Ferrari 250 GTE s/n 4957GT

Ferrari 250 GTE s/n 4959GT

.. - original engine out of car

Ferrari 250 GTE s/n 4961GT
