Technical Specifications

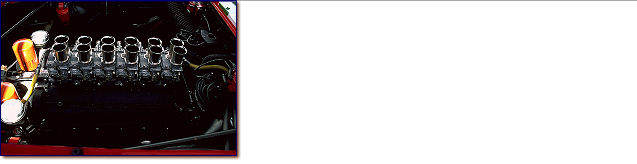

Engine

Front longitudinal 60° V12,

light alloy cylinder block and head

Timing gear

2 valves per cylinder,

single overhead camshaft per cylinder bank

Bore and stroke

73 x 58.8 mm

Unitary and total displacement

246.10/2,953.21 cc

Compression ratio

9.2:1

Maximum power

280 bhp at 7,000 rpm

Transmission

Dry, single-plate clutch, 4-speed gearbox + reverse,

conventional differential

Chassis

Elliptical section steel tubes

Front suspension

Independent, double wishbones, coil springs

Rear suspension

Live axle, semi-elliptic leaf springs

Wheelbase, front and rear track

2,400/1,378/1,374 mm

Kerb weight

1,020 kg

Fuel tank

90 litres


Total

351
 Previous page
 Next page
Up

Ferrari 250 GT Lusso s/n 5181GT

Ferrari 250 GT Lusso s/n 5183GT

Ferrari 250 GT Lusso s/n 5185GT

Ferrari 250 GT Lusso s/n 5187GT

250 GT Lusso s/n 5187GT, Mr. Dütsch

Ferrari 250 GT Lusso s/n 5189GT

Ferrari 250 GT Lusso s/n 5191GT

Ferrari 250 GT Lusso s/n 5193GT

.. - engine 4383 removed and engine 2563GT (250 GT SWB) installed

Ferrari 250 GT Lusso s/n 5195GT

250 GT Lusso s/n 5195GT

Ferrari 250 GT Lusso s/n 5197GT

Ferrari 250 GT Lusso s/n 5199GT

Ferrari 250 GT Lusso s/n 5201GT

250 GT Lusso, s/n 5101GT



Ferrari 250 GT Lusso s/n 5203GT

84 - engine installed in 0179EL 212/225 until 1991

330 America s/n 5103GT

Ferrari 250 GT Lusso s/n 5205GT

330 America s/n 5005GT converted to 250 TR/59 replica

Ferrari 250 GT Lusso s/n 5207GT

Ferrari 250 GT Lusso s/n 5209GT

Ferrari 250 GT/L s/n5209 GT driven by Federico Imbert

Ferrari 250 GT Lusso s/n 5211GT

Ferrari 250 GT Lusso s/n 5213GT

64 - engine installed in 2095GT (250 GT SWB Comp.)

250 GT Lusso engine s/n 5213GT in 250 GT SWB Berlinetta Competizione s/n 2095GT

Ferrari 250 GT Lusso s/n 5215GT

Ferrari 250 GT Lusso s/n 5217GT

Ferrari 250 GT Lusso s/n 5219GT

Ferrari 250 GT Lusso s/n 5221GT

91/... - engine installed in 1953GT

Ferrari 330 America s/n 5121GT

Ferrari 250 GT Lusso s/n 5223GT

250 GT/L s/n 5223GT

Ferrari 250 GT Lusso s/n 5225GT

Ferrari 250 GT Lusso s/n 5227GT

Ferrari 250 GT Lusso s/n 4627

Ferrari 250 GT Lusso s/n 5229GT

Ferrari 250 GT Lusso s/n 5231GT

Ferrari 250 GT Lusso s/n 5233GT

Ferrari 250 GT Lusso s/n 5235GT

Ferrari 330 America s/n 5035

Ferrari 250 GT Lusso s/n 5237GT

Ferrari 250 GT Lusso s/n 5239GT

Ferrari 250 GT Lusso s/n 5241GT

Ferrari 250 GT Lusso s/n 5243GT

.. - rebuilt as 250 GTO'62
.. - engine installed from 5589GT (250 GT Lusso)

Ferrari 250 GT Lusso s/n 5245GT

Ferrari 250 GT Lusso s/n 5247GT

Ferrari 250 GT Lusso s/n 5247GT

Ferrari 250 GT Lusso s/n 5249GT

Ferrari 250 GT Lusso s/n 5251GT

250 GT/L s/n 5251GT

Ferrari 250 GT Lusso s/n 5253GT

Ferrari 250 GT Lusso s/n 5255GT

250 GT Berlinetta Lusso s/n 5255

Ferrari 250 GT Lusso s/n 5257GT

Ferrari 250 GT Lusso s/n 5259GT

Ferrari 250 GT Lusso s/n 5261GT

330 America s/n 5061GT

Ferrari 250 GT Lusso s/n 5269GT

330 America s/n 5069GT

Ferrari 250 GT Lusso s/n 5275GT

Ferrari 250 GT Lusso s/n 5277GT

Ferrari 250 GT Lusso s/n 5279GT

Ferrari 250 GT Lusso s/n 5281GT

Ferrari 250 GT Lusso s/n 5283GT

Ferrari 250 GT Lusso s/n 5285GT

Ferrari 250 GT Lusso s/n 5287GT

250 GT Lusso s/n 5287GT

Ferrari 250 GT Lusso s/n 5289GT
