Technical Specifications |
Engine |
Engine |
Front longitudinal 60° V12, |
| light alloy cylinder block and head | |
Timing gear |
2 valves per cylinder, |
| single overhead camshaft per cylinder bank | |
Bore and stroke |
73 x 58.8 mm |
Unitary and total displacement |
246.10 / 2,953.21 cc |
Compression ratio |
9:1 |
Maximum power |
230 bhp at 7,500 rpm; 75 bhp/litre |
Transmission |
Dry, single-plate clutch, |
| 5 speed-gearbox + reverse, | |
| conventional differential |
Chassis |
Elliptical-section steel tubes |
Front suspension |
Independent, double wishbones, |
| transverse lower leaf spring | |
Rear suspension |
Live axle, longitudinal semi-elliptic leaf springs |
Wheelbase, front and rear track |
2,250/1,278/1,250 mm |
Kerb weight |
850 kg |
Fuel tank |
150 litres |
Top speed |
250 km/h |
Test Sheet |
| n/a |
|

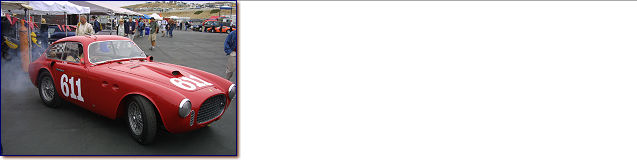

Vignale Berlinetta |
1 | 0156ET |
|
Total |
1 |
