Technical Specifications

360 GT & 360 GTC


Engine

Type -


Construction Number

Type

rear V8

Bore x Stroke

85 x 79 mm

Unitary displacement

448.29 cc

Displacement

3586.20 cc

Compression Ratio

11:1

Camshaft

twin overhead camshafts per bank, five valves per cylinder

Fuel Feed

Bosch electronic injection 360 GT

Magneti Marelli electronic injection 360 GTC

Injection

Bosch electronic, single spark plug per cylinder 360 GT

Magneti Marelli electronic, single spark plug per cylinder

360 GTC

Bhp @ rpm

316 kW (430 hp) at 8500 rpm 360 GT

331 kW (450 hp) at 8750 rpm GTC


Drive Train

Clutch

single-plate 360 GT

twin-plate  360 GTC

Transmission

electro-hydraulic F1 6-speed + reverse 360 GT

sequential 6-speed + reverse 360 GTC


Chassis

Frame

aluminium spaceframe

Suspension

Front   independent, unequal-length wishbones, coil springs,

telescopic shock absorbers, anti-roll bar

Rear independent, unequal-length wishbones, coil springs,

telescopic shock absorbers, anti-roll bar

Bodywork

Type

two-seater berlinetta

Length cm

Overall 4557 mm

Width 1982 mm 360 GT

1982 mm 360 GTC

Height 1185 mm

Wheelbase

2600 mm

Track  Front 1714 mm 360 GT

1728 mm 360 GTC

Track  Rear 1573 mm 360 GT

1643 mm 360 GTC

Brakes

discs

Whells

Front 10 x 17

Rear 15 x 17

Tires

Goodyear or Pirelli

Front 265/645 x 18

Rear 305/680 x 18


General

Curb Weight kg

1100 kg



Total

40

(no 013 was not used)

 Previous page
 Next page
Up

360 GT Michelotto s/n 000M
Converted from 360 Challenge car

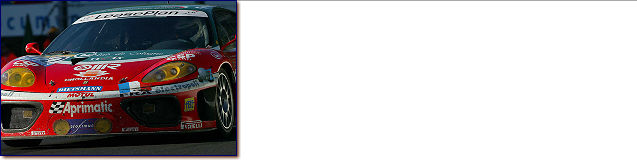

Ferrari 360 N-GT s/n 119073 - JMB

360 GT Michelotto s/n 001M
Converted from 360 Challenge car

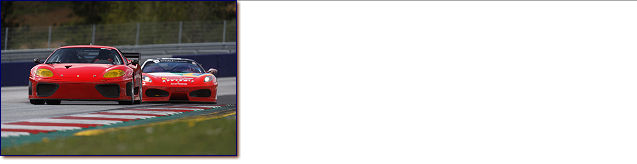

Ferrari 360 Modena N-GT s/n N-GT 001M / 118766

360 GT Michelotto s/n 002M
Converted from 360 Challenge car

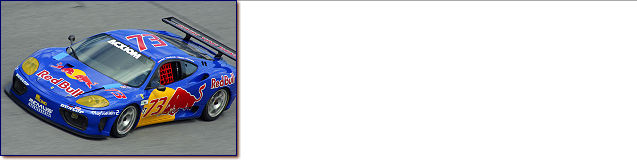

Ferrari 360 Modena N-GT, s/n N-GT 002M / 118775

360 GT Michelotto s/n 003M
Converted from 360 Challenge car

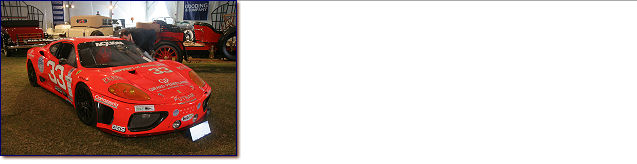

360 N-GT s/n 003M - 119349

360 GT Michelotto s/n 004M
Converted from 360 Challenge car 122903

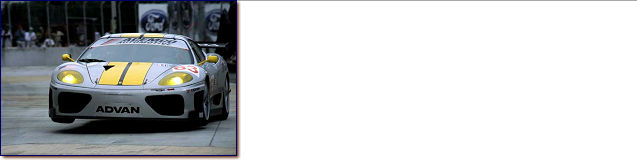

Ferrari 360 Modena N-GT s/n 004M #122903

360 GT Michelotto s/n 005M
Converted from 360 Challenge car

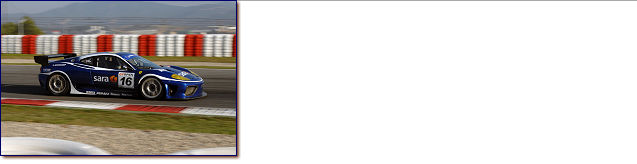

360 N-GT s/n 005M


360 GT Michelotto s/n 006M
Converted from 360 Challenge car

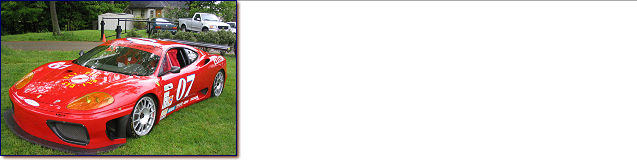

Ferrari 360 N-GT s/n 006M

360 GT Michelotto s/n 007M
Converted from 360 Challenge car

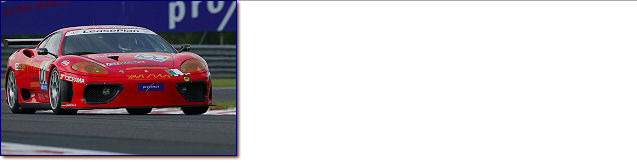

Ferrari 360 N-GT s/n 007M s/n 118459

360 GT Michelotto s/n 008M
Converted from 360 Challenge car

360 N-GT s/n 008M - 119081

360 GT Michelotto s/n 009M
Converted from 360 Challenge car

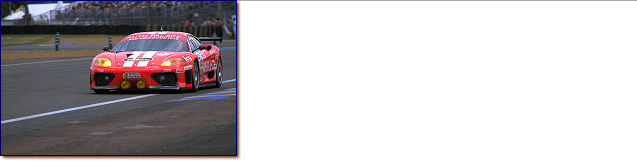

Ferrari 360 Modena sponsored by "Auto Palace" s/n N-GT 009M 123037

360 GT Michelotto s/n 010M
Converted from 360 Challenge car

National GT class winner, Loris Kessell Racing Ferrari 360 Modena of Yah-Man, Alex Caffi, Andrea Chiesa and Emanuele Moncini (360 Modena N-GT #122578 N-GT 010M)

360 GT Michelotto s/n 011M
Converted from 360 Challenge car

Ferrari 360 Modena N-GT, s/n N-GT 011 (Michelotto)

360 GT Michelotto s/n 012M
Converted from 360 Challenge car

Ferrari 333 SP s/n 014

360 GT Michelotto s/n 013M
Converted from 360 Challenge car

360 N-GT s/n 013M

360 GT Michelotto s/n 015M
Converted from 360 Challenge car

Kelvin Burt, Team Maranello Concessionaires, Ferrari 360 Modena

360 GT Michelotto s/n 016M
Converted from 360 Challenge car

360 Modena N-GT s/n 016M

360 GT Michelotto s/n 014M
Converted from 360 Challenge car

360 N-GT s/n 014M

360 GTC s/n 2000
unused

F333 SP s/n 019

360 GTC s/n 2004

Ferrari 360 N-GT s/n 2004

360 GTC s/n 2002

360 GTC s/n 2018

Ferrari 360 N-GT s/n 2018 ( F131GT)

360 GTC s/n 2006

Ferrari 360 N-GT s/n 2006 - Risi - Kelleners - Lazzaro - Borcheller

360 GTC s/n 2008

Ferrari 360 GTC s/n 2008

360 GTC s/n 2010

Third place in N-GT Jamie Davies and Darren Turner, Team Maranello Concessionaires Ferrari 360 Modena

360 GTC s/n 2012

333 SP s/n 025 of Didier Theys, Mauro Baldi and Fredy Lienhard

360 GTC s/n 2014

Ferrari 360 N-GT s/n 2014 - Risi - Lewis - Leitzinger

360 GTC s/n 2016

Tim Mullen takes over the Scuderia Ecosse Ferrari late in the race,  going out and setting very fast times near the end of the race... Ferrari 360 GT s/n 2016

360 GTC s/n 2032

Ferrari 360 Modena N-GT s/n 2032 F131GT

360 GTC s/n 2020

Ferrari 333 SP s/n 029, BMS Scuderia Italia, Angelo and Marco Zadra

360 GTC s/n 2022

Marino Franchitti and Kevin McGarrity, Risi Competizione Ferrari 360 Modena  s/n 2022

360 GTC s/n 2024

Kelemata Italtechnica 333 SP s/n 031, Giraudi/Tedeschi

360 GTC s/n 2026

Ferrari 333 SP s/n 032

360 GTC s/n 2028

Ferrari 360 N-GT s/n 2028

360 GTC s/n 2030

Ferrari 333 SP s/n 034

360 GTC s/n 2036

360 GTC s/n 2034

360 GTC s/n 2052

360 GTC s/n 2038

360 N-GT (Cirtek) s/n 2038

360 GTC s/n 2040

360 N-GT s/n 2040

360 GTC s/n 2050

[Pescatori / de Simone / Bertolini] Ferrari 360 GTC, s/n 2050

360 GTC s/n 2042
unused

360 N-GT s/n 2040

360 GTC s/n 2044
unused

360 N-GT s/n 2040

360 GTC s/n 2046
unused

360 N-GT s/n 2040

360 GTC s/n 2048
unused

360 N-GT s/n 2040

360 GTC s/n 2054

360 GTC s/n 2056 ...

Ferrari 360 GTC s/n 2056

360 GTC s/n 2058

360 GTC s/n 2060

360 GTC s/n 2062

[Cirtek Motorsport] Ferrari 360 GTC, s/n F131GTC 2062

360 GTC s/n 2064

360 GTC s/n 2066

360 GTC s/n 2068
